Description

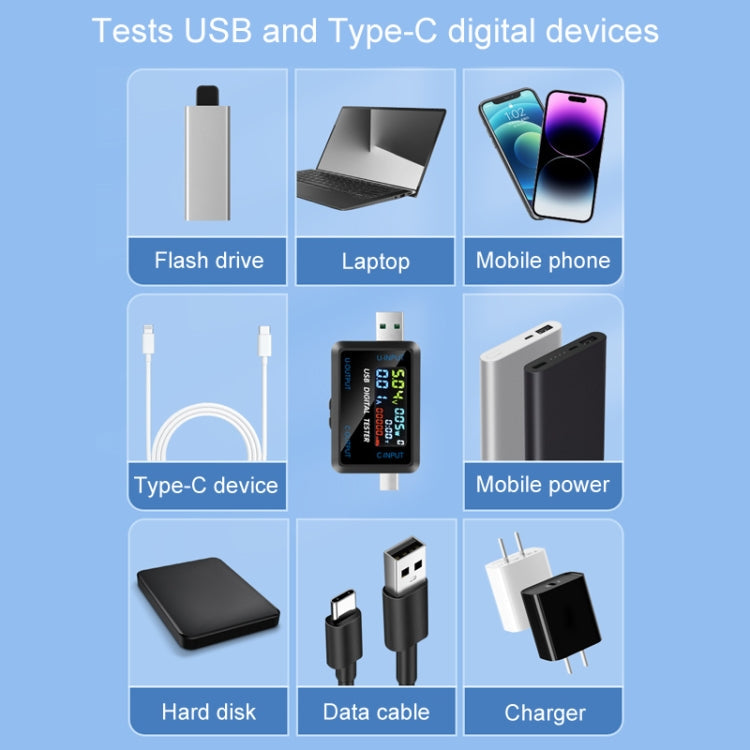

1. A variety of fast charging protocols automatically detect fast charging identification test, to meet the needs of various types of cell phone users

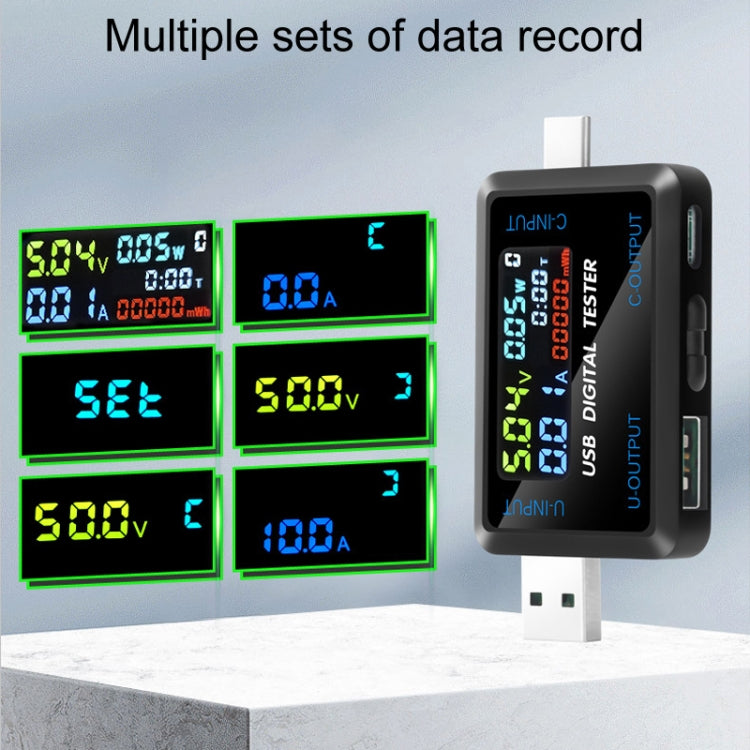

2. Multi-group data recording battery capacity detection

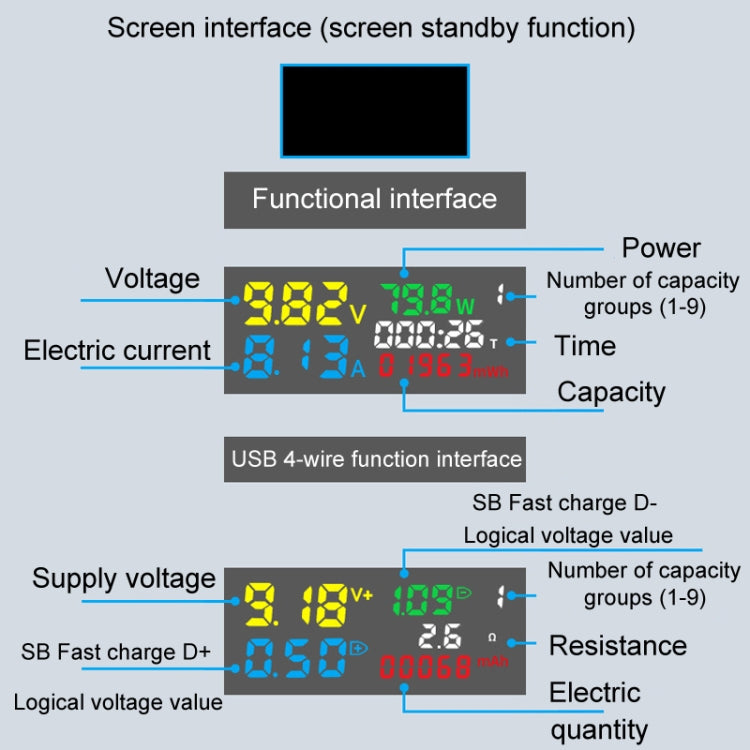

3. When the power supply to the notebook, you can real-time monitoring of charging voltage and current and other parameters of information

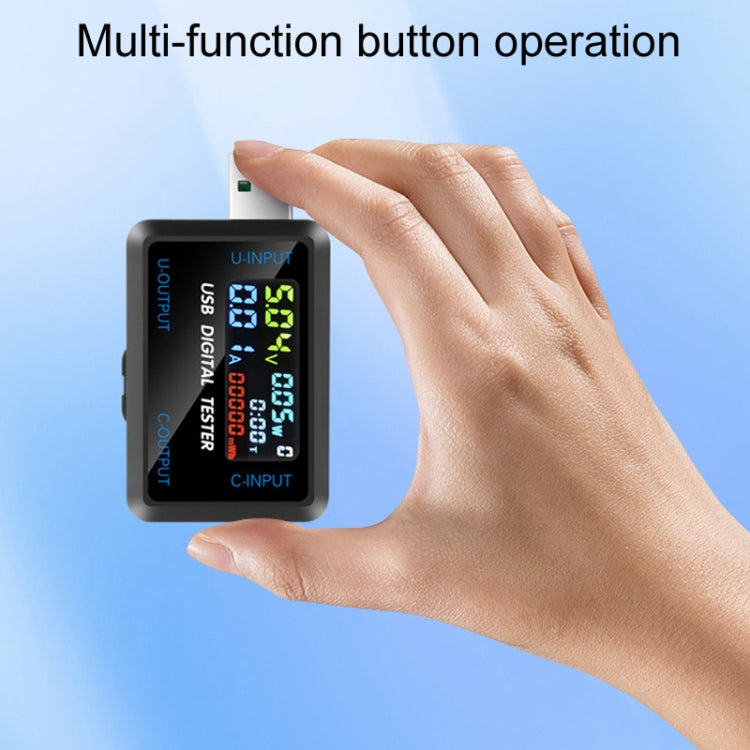

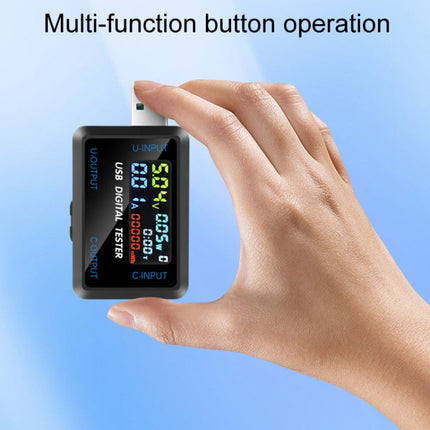

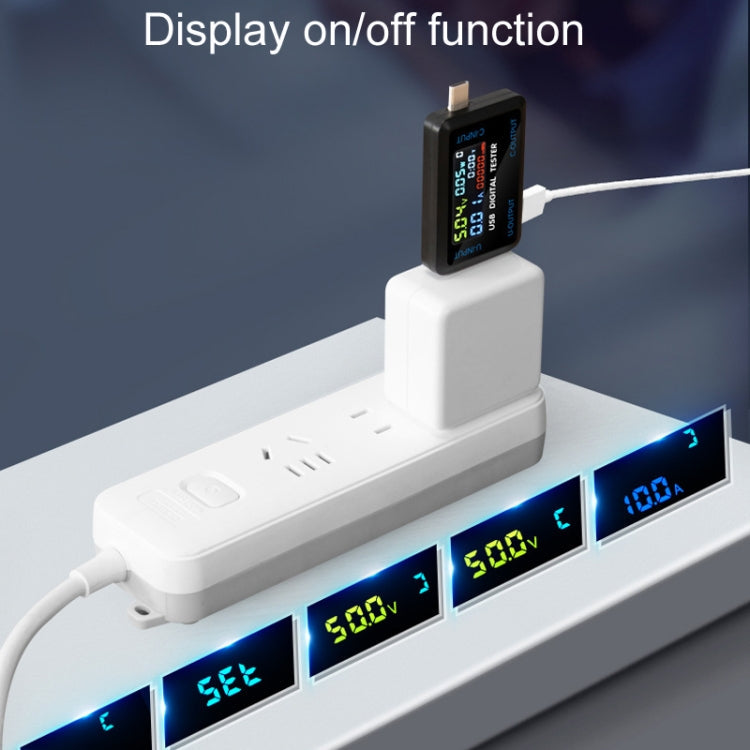

4. Through the multifunctional key short press switch interface to the hibernation interface for the closed display, but also normal charging to the device at night charging, does not affect the sleep, stand-alone key to re-wake up the display
Parameters:
1. Voltage measurement range:4.5V-36.0V
2. Current measurement range: 0-5A/0-8A
3. Capacity totalization range:0-99999mAh
4. Power accumulation range:0-99999mWh
5. Power measurement range:0.00-150W
6. Impedance measurement range: 1-999.9Ohm
7. Temperature measurement range: 0-80 degrees celsius
8. Timing time: 999 hours and 59 minutes

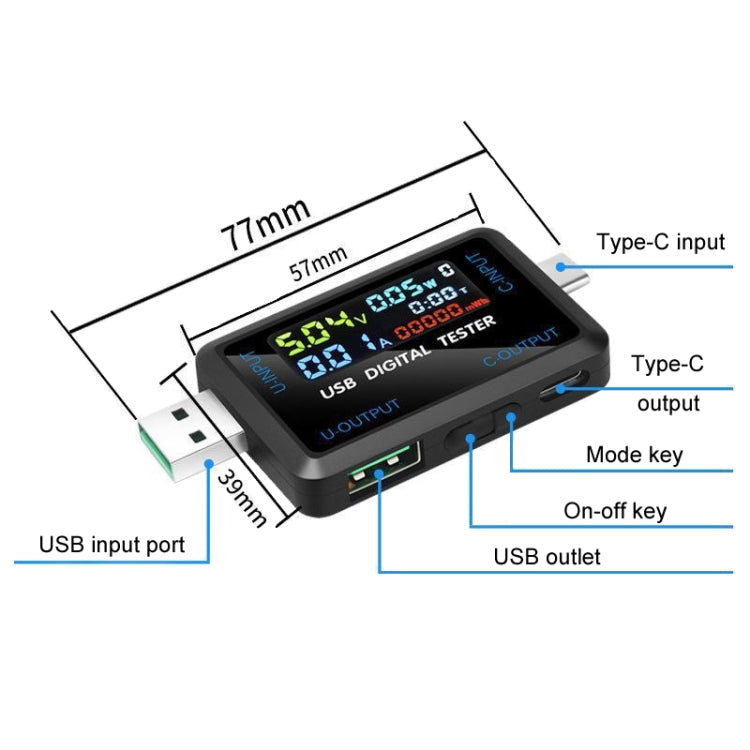

9. Input interface: 5A high current USB interface/Type-C interface
10. Output interface: USB/Type-C
11. Voltage range: OV-2.99V
12. Refresh time: more than 500mS/time
13. Measurement rate: about 0.5 times/second
14. Display type: IPS true-color digital LCD screen
15. Self-consumption current: less than 0.02A
16. Operating temperature: -10-60 degree celsius
17. Operating humidity: 10-80 (no condensation)
18. Working air pressure: 80-106kPa
Specification:
| Package Weight |
| One Package Weight |
0.03kgs / 0.07lb |
| One Package Size |
10cm * 7cm * 3cm / 3.94inch * 2.76inch * 1.18inch |
| Carton Weight |
9.00kgs / 19.84lb |
| Carton Size |
51cm * 38cm * 32cm / 20.08inch * 14.96inch * 12.6inch |
| Loading Container |
20GP: 429 cartons * 250 pcs = 107250 pcs
40HQ: 998 cartons * 250 pcs = 249500 pcs
|
|
