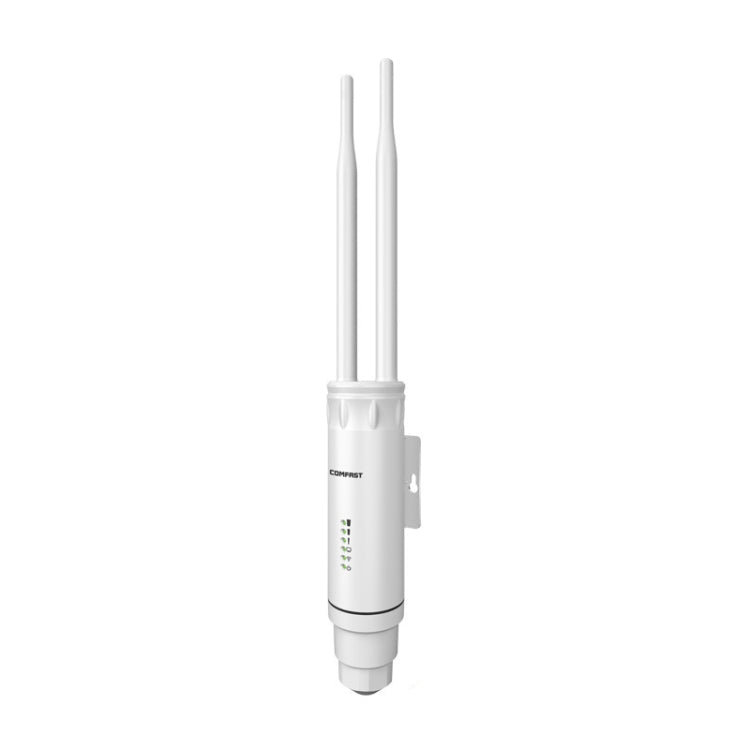

Description
1. Memory: 64MB, flash memory: 8MB, power amplifier chip: SKY8575, SKY85330

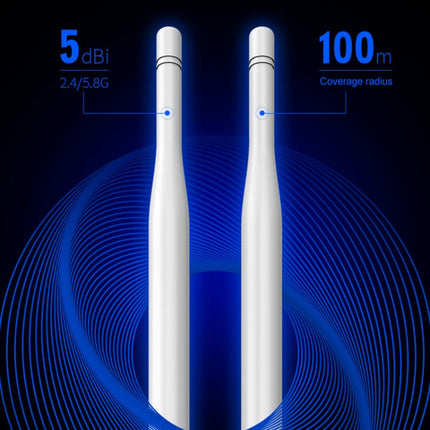

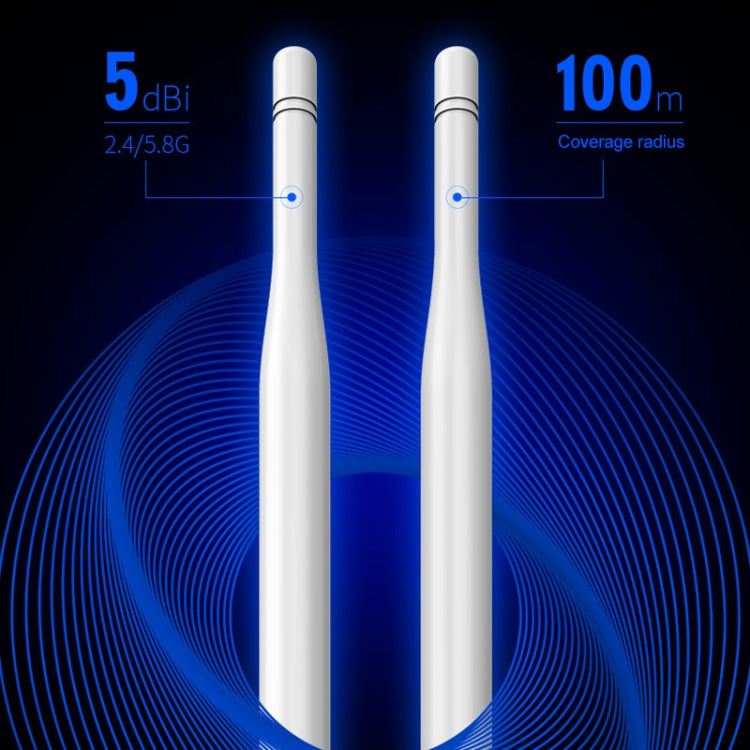

2. Antenna specification: 5dBi*2 external antenna
3. Transmitting frequency: 159mW, receiving sensitivity: -96dBm

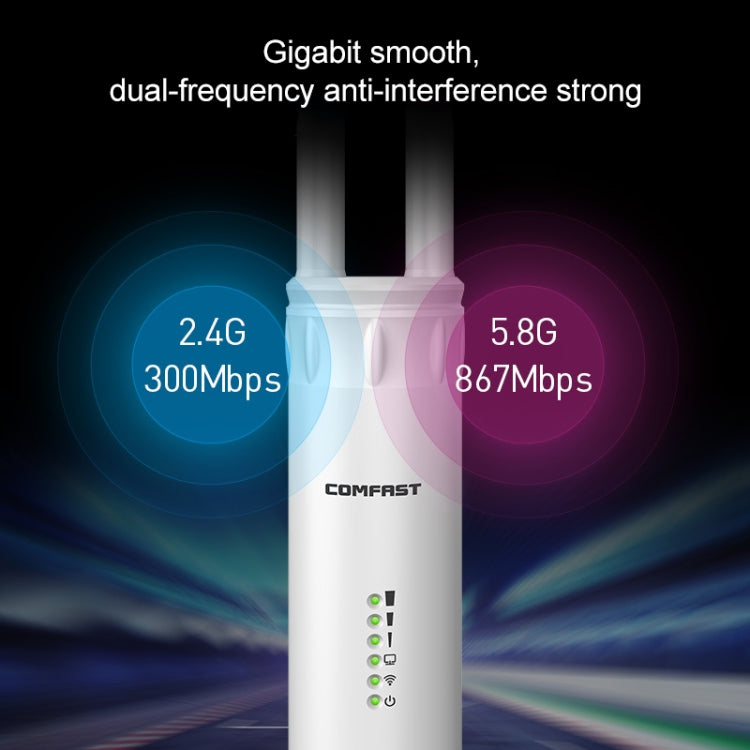

4. Wireless rate: 2.4GHz: 300Mbps, 5GHz: 867Mbps
5. Power adapter: 24V 0.5A

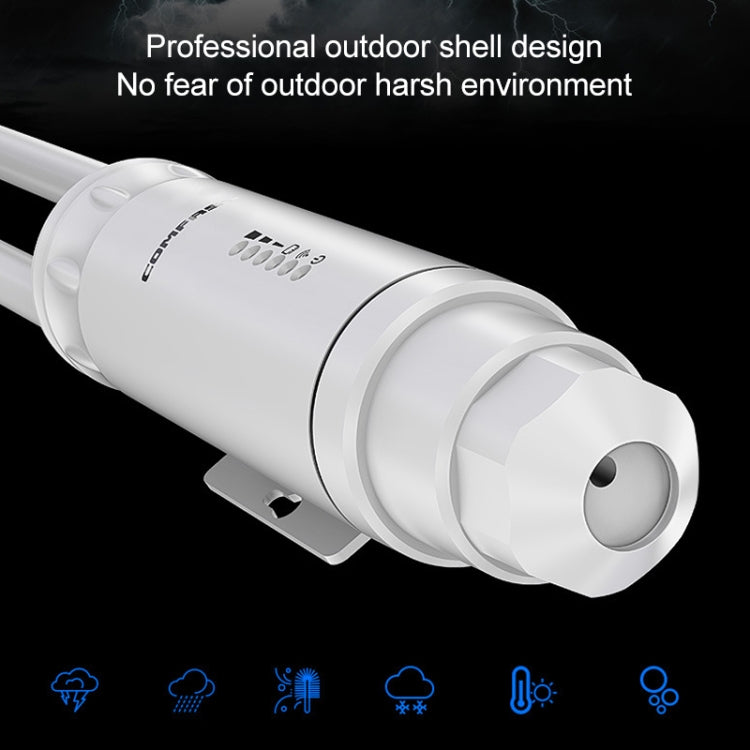

6. Installation method: wall-mounted, pole-mounted
7. Material: ABS, plastic
8. Working temperature: -10 to 65 degrees Celsius
9. Storage temperature: -40 to 70 degrees Celsius
10. Working humidity: 10-90%RH
11. Storage temperature: 5-90%RH
12. Power consumption: less than 12W
13. Strong diffraction in the 2.4GHz band, strong anti-interference in the 5.4GHz band, two-pronged approach, better performance
14. Two external dual-band omnidirectional antennas, 360-degree omnidirectional coverage, to meet the needs of various scenarios
15. Equipped with PA to improve wireless transceiver performance
16. Support PoE network cable power supply, the power supply distance is less than or equal to 100 meters

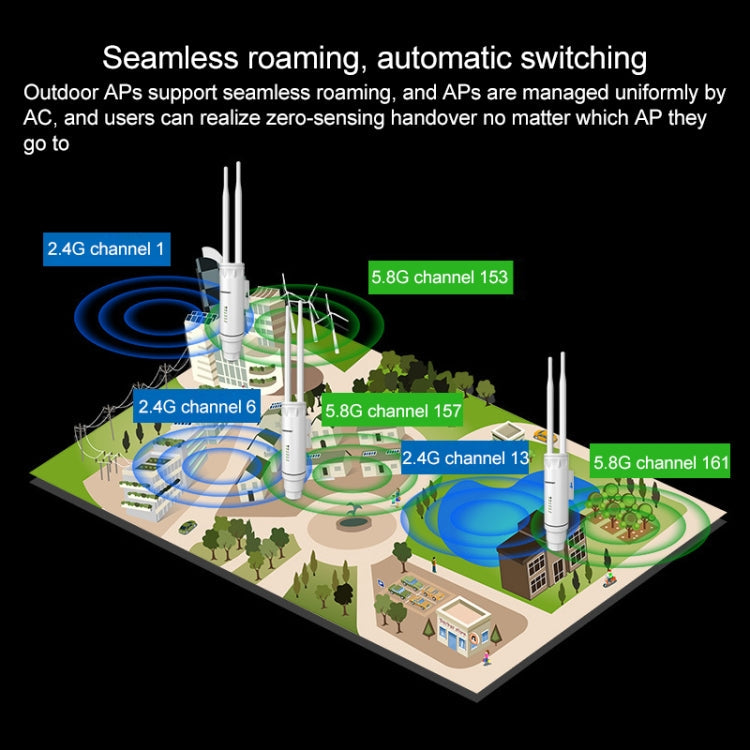

17. Wireless roaming, automatic switching
18. Support COMFAST wireless outdoor AP unified management and configuration, upgrade, data query, etc.
19. Size: 380x54mm
Specification:
| General |
| Transmission Rate |
1200Mbps |
|
| Environment |
| Storage Temperature |
-40 - 70 Degrees Celsius |
| Operating Humidity |
10 - 95% RH, non-condensing |
| Storage Humidity |
5% to 90% RH non-condensing |
|
| Package Weight |
| One Package Weight |
0.54kgs / 1.18lb |
| One Package Size |
25cm * 17cm * 6cm / 9.84inch * 6.69inch * 2.36inch |
| Carton Weight |
12.60kgs / 27.78lb |
| Carton Size |
50cm * 34cm * 30cm / 19.69inch * 13.39inch * 11.81inch |
| Loading Container |
20GP: 522 cartons * 20 pcs = 10440 pcs
40HQ: 1213 cartons * 20 pcs = 24260 pcs
|
|
