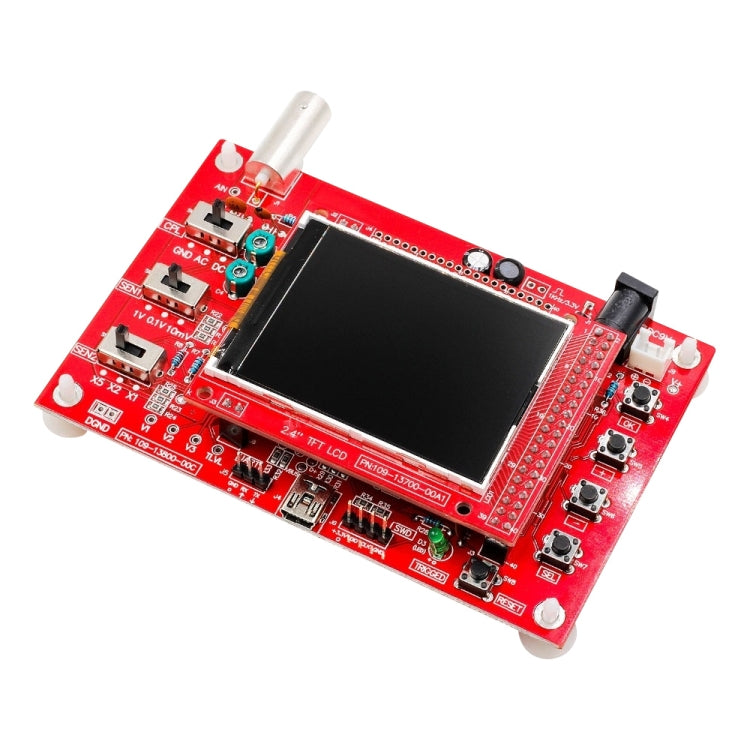

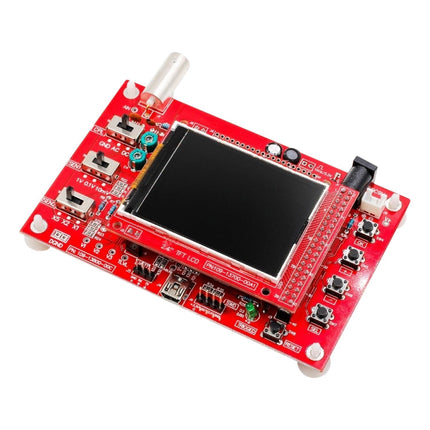

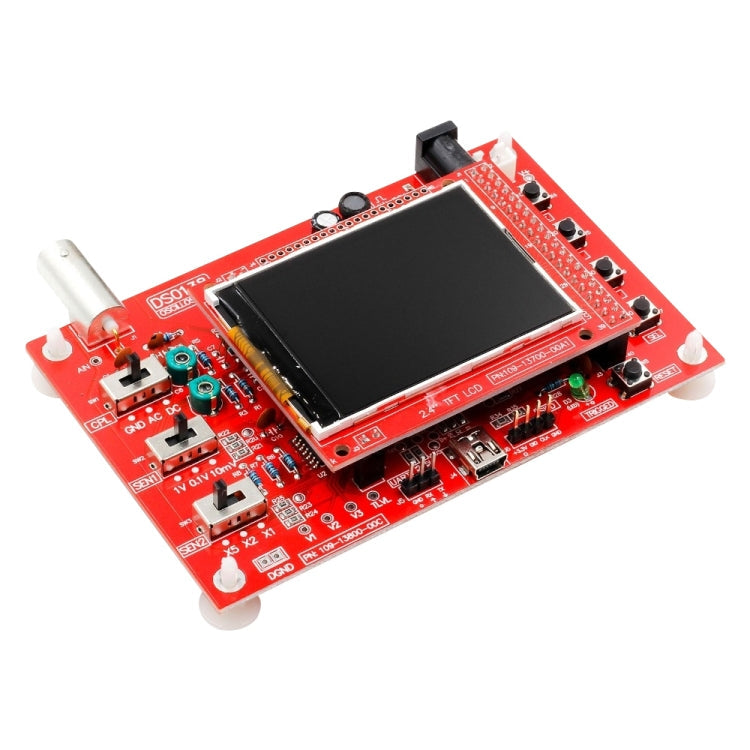

Name: DSO138 Oscilloscope (Full Assembled)
Brand: Mira Sales
SKU: TBD0532699
Price: 10.99 GBP
Availability: InStock

DSO138 Oscilloscope (Full Assembled)

Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

DSO138 Oscilloscope (Full Assembled)

Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Product form

Features:1. This kit uses ARM Cortex-M3 processor (STM32F103C8), and includes a 2.4-inch color TFT display screen, can be used as... Read more

Expedited Delivery Available! Expedited Delivery Available!

£ 10.99 GBP

Guaranteed secure & safe checkout.

Unbiased Recommendation by Judge.Me | Check Our 100% Verified Reviews. (Read before ordering) Where trust drives commerce All Reviews are 100% Verified and independently Managed by Judge.me for Authenticity.

Shipped today? Order within: May 23, 2026 14:00:00 +0100

We take great care in ensuring that all our products meet quality standards and are packaged securely for safe delivery.

No hassle returns, 30 days return

Description

Features:
1. This kit uses ARM Cortex-M3 processor (STM32F103C8), and includes a 2.4-inch color TFT display screen, can be used as ARM test development board.
2. Can be secondary development on the basis of this kit, for example, it can be changed to Millivoltmeter, data loggers.
3. Adjustable vertical displacement, and with instructions.
4. With automatic, regular and one-shot modes, easy to capture the moment waveform.
5. Available rising or falling edge trigger.
6. Observable previous trigger waveform (negative delay).
7. Can freeze at any time waveform display (HOLD function).

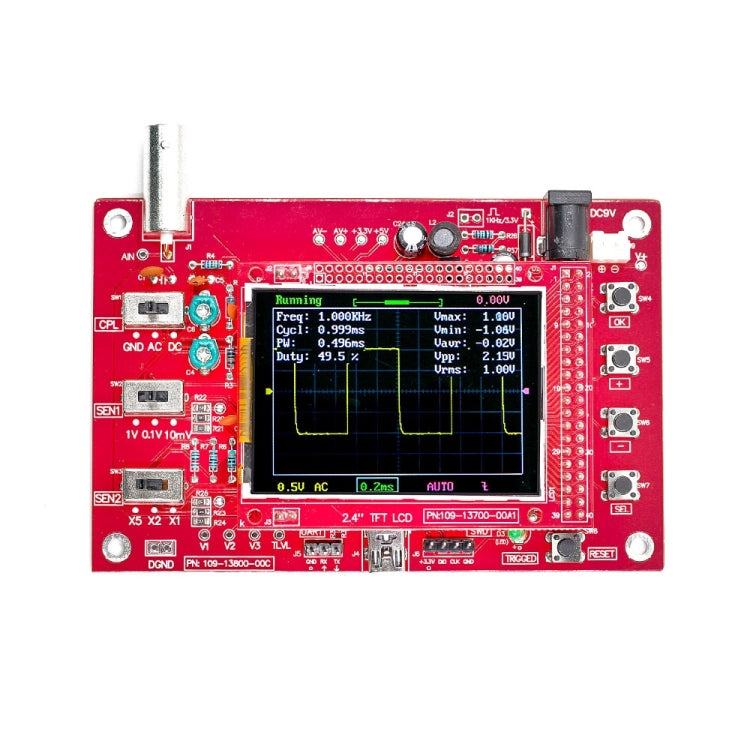

8. Come 1Hz /3.3V square wave test signal source.

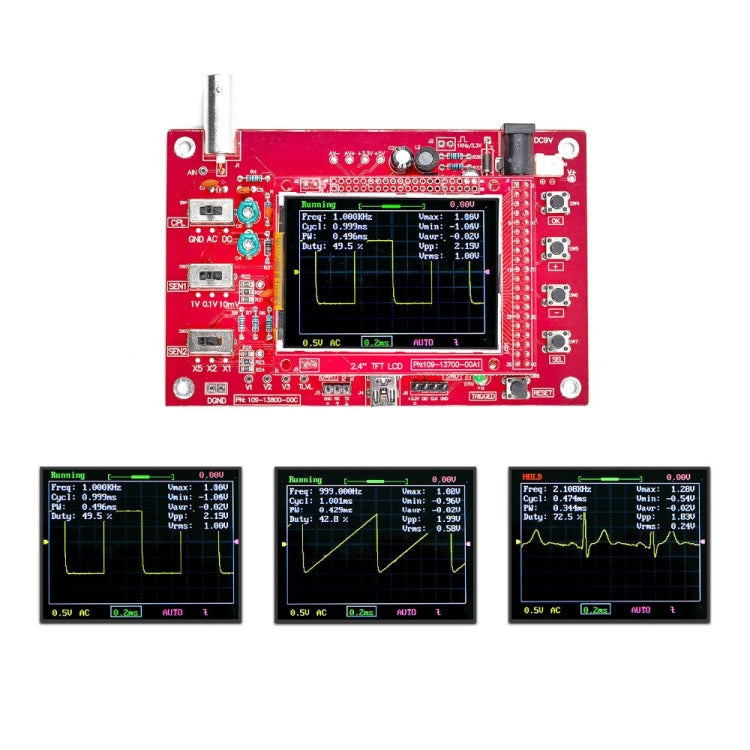

9. With waveform parameter digital display, including frequency, period, pulse width, duty ratio, MAX./MIN./AVG./Peak-Peak/virtual values.
10. Waveform storage function: will not lose the waveform after power off.
11. Short-circuit and open-circuit detection: can help the user find out the soldering error.
12. TFT controller recognition function.

Note:
This DIY kit is soldered.

Specifications:
1. Maximum Real-time Sampling Rate: 1Msps
2. Accuracy: 12Bit
3. Sampling Buffer Depth: 1024 bytes
4. Analog Bandwidth: 0-200KHz
5. Vertical Sensitivity: 10mV / Div - 5V / Div (1-2-5 progressive manner)
6. Input Impedance: 1Mohm
7. Maximum Input Voltage: 50Vpp (1: 1 probe), 400Vpp (10: 1 probe)
8. Coupling Modes: DC / AC / GND
9. The Horizontal Time Base Range: 10μs / Div - 50s / Div (1-2-5 progressive manner)
10. Supply Voltage: DC 9V
11. PCB Size: 117 * 76mm / 4.6 * 3in
12. Screen Size: 52 * 40mm / 2 * 1.57in

Package List:
- 1 * DSO138 soldered Oscilloscope Kit
- Soldering
- 1 * Probe
- 3 * User Manual(English)

Specification:

Package Weight

One Package Weight

0.15kgs / 0.33lb

One Package Size

20cm * 13cm * 3cm / 7.87inch * 5.12inch * 1.18inch

Qty per Carton

116

Carton Weight

15.00kgs / 33.07lb

Carton Size

30cm * 50cm * 50cm / 11.81inch * 19.69inch * 19.69inch

Loading Container

20GP: 355 cartons * 116 pcs = 41180 pcs
40HQ: 825 cartons * 116 pcs = 95700 pcs
