Description

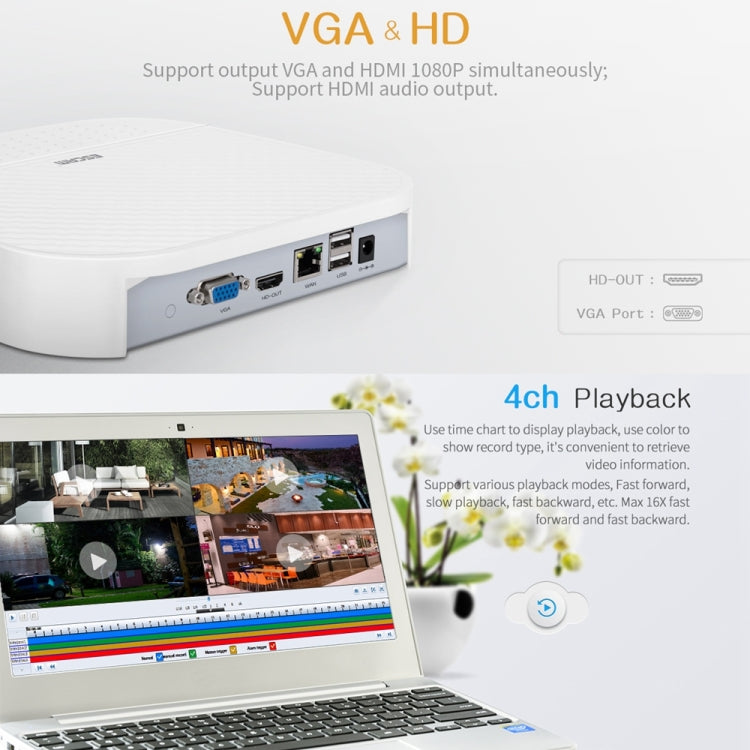

1. Support output VGA and HDMI 1080P simultaneously.

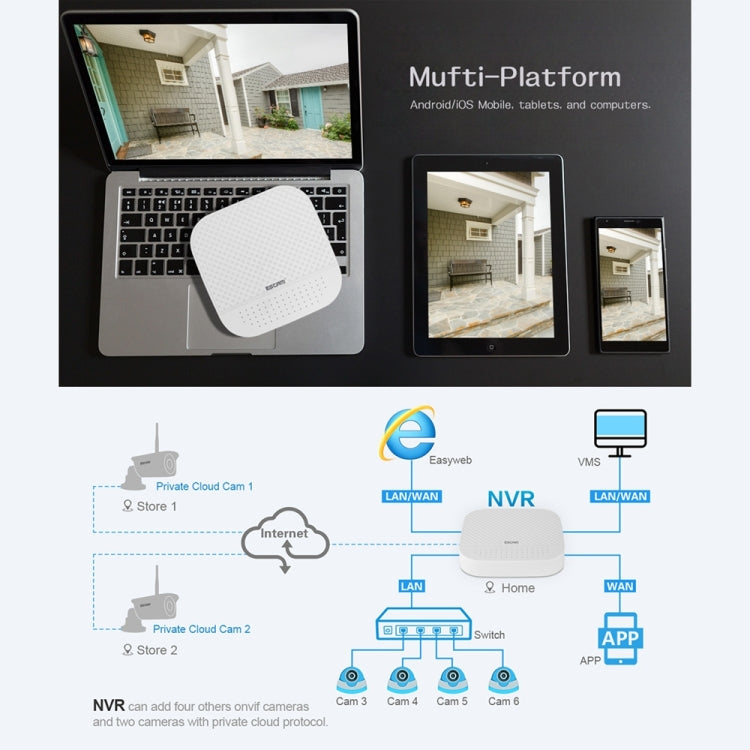

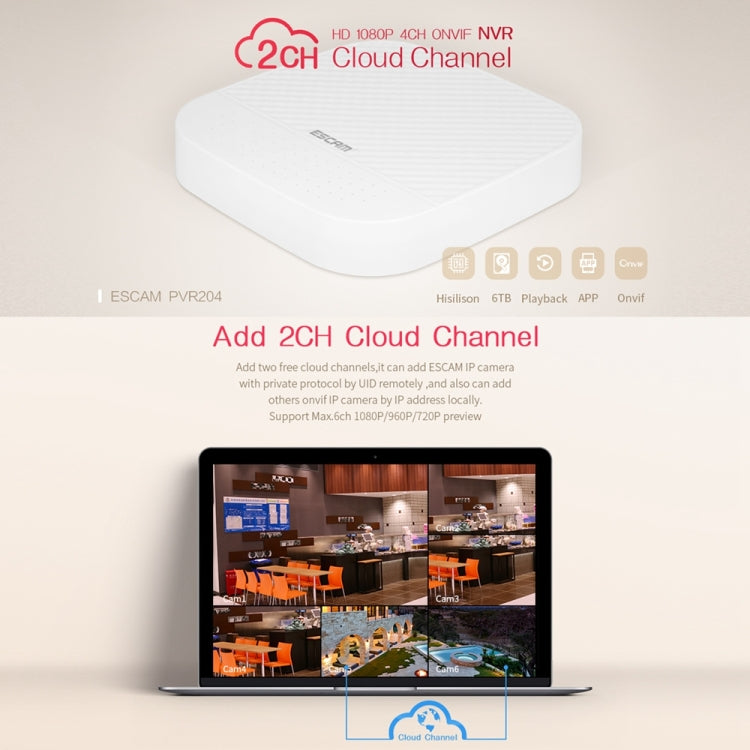

2. Support Max.6ch preview, 4ch playback; Add 2ch cloud channel can add ESCAM IP camera with private protocol remotely.
3. Single picture support Max. 2MP main-stream, 4 pictures support max. 4*1.3MP mainstream
4. Support HDMI audio output.
5. Support preview snapshot and playback snapshot.
6. Use time chart to display playback, use color to show record type, it's convenient to retrieve video information.
7. You can backup the record according to the occurrence time and duration, even for seconds.
8. Camera's IP address can be modified in bulk, cameras can be added remotely.
9. Can connect with IP camera, support various Onvif version.
10. Can connect with main brand IPC (private protocol and standard ONVIF).
11. Preview channel position can be switched freely; MAC address doesn't change, convenient for installing.
12. The backup record and picture via U-disk can playback on NVR, much more convenient.
13. Support various playback modes, fast forward, slow playback, fast backward, etc. Max 16X fast forward and fast backward.
14. Support WEB, VMS, android/iOS mobile app.
15. Support P2P, QR scan and playback via mobile app.
Specification:
| Media Format |
| Video Compression Format |
H.264 |
| Audio Compression Format |
G.711U |
|
| NVR |
| System |
Operating system: Embedded LINUX OS |
| Recording |
Backup mode: Support HDD, USB flash disk store & backup
Frame rate: 30 fps NTSC, 25fps PAL |
| Record Mode |
Manual, motion detection, Time |
| NVR Interface |

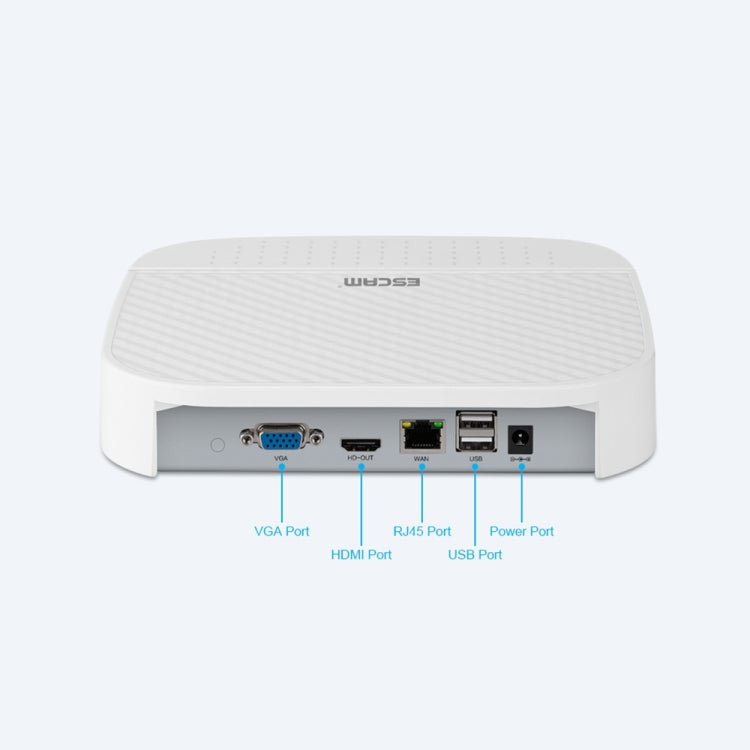

1 x VGA, 1 x HDMI, 1 x RJ45, 1 x DC Jack, 2 x USB 2.0 |
| Video interface |
Video output: 1ch VGA and 1ch HDMI |
| Network |
RJ45 10/100M Ethernet |
| HDD |

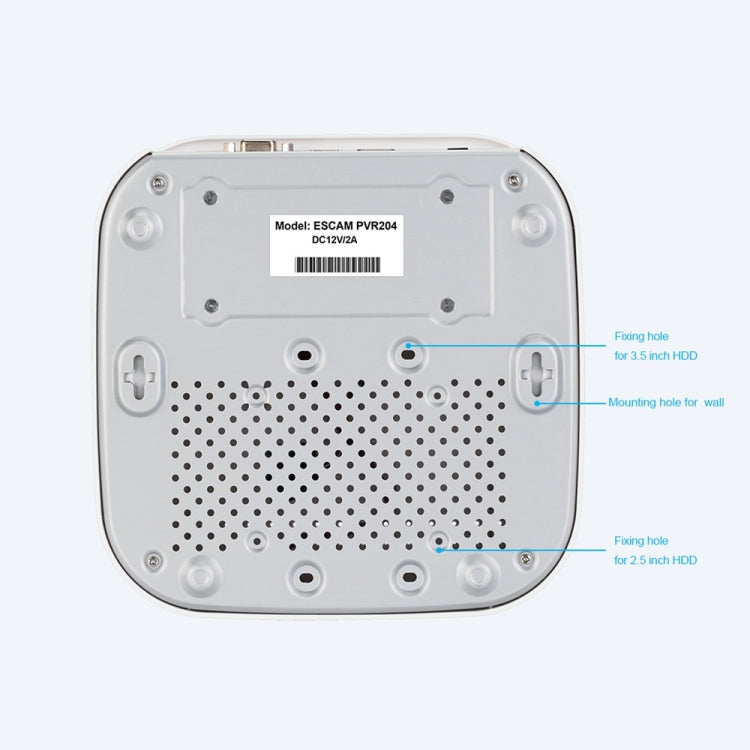

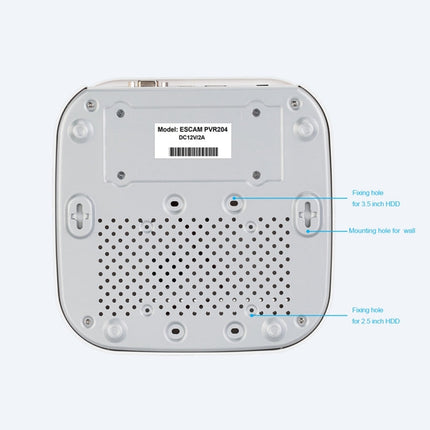

SATA HDD (not included), Max 6TB / PER |
| Mobile Surveillance |
Smartphone (iPhone, Android) |
| PC Surveillance |
Support IE and VMS remote surveillance |
|
| Physical Environment |
| Operate Temperature |
-10 to 55 Degree Celsius |
| Working Humidity |
10 to 95 percent |
|
| Package Include |

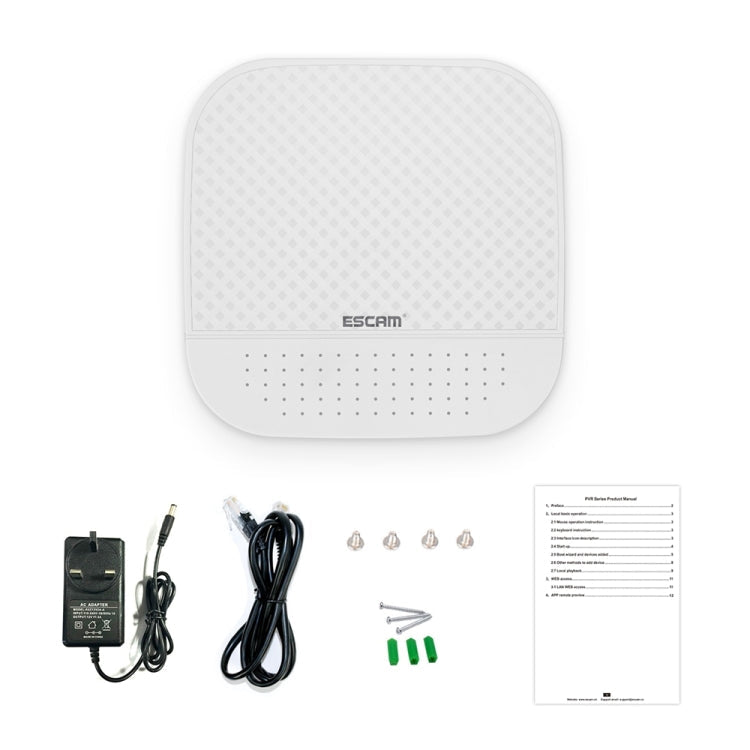

| Package Contents |
1 x Mounting Accessories

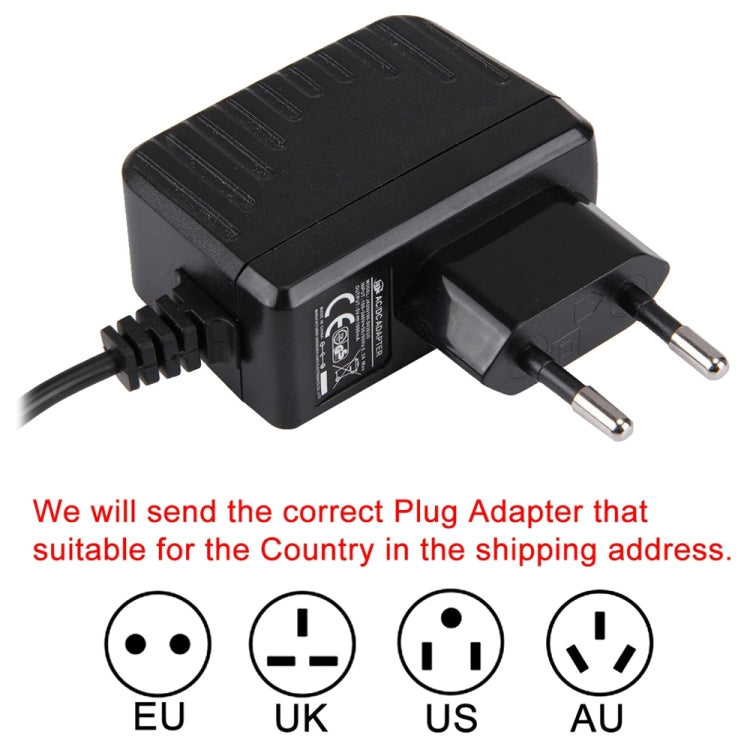

1 x Power Adapter (US, UK, EU, AU Optional)
1 x NVR
1 x User Manual |
|
| Package Weight |
| One Package Weight |
1.05kgs / 2.31lb |
| One Package Size |
34cm * 25cm * 6cm / 13.39inch * 9.84inch * 2.36inch |
| Carton Weight |
10.80kgs / 23.81lb |
| Carton Size |
50cm * 32cm * 35cm / 19.69inch * 12.6inch * 13.78inch |
| Loading Container |
20GP: 476 cartons * 10 pcs = 4760 pcs
40HQ: 1105 cartons * 10 pcs = 11050 pcs
|
|
