Description

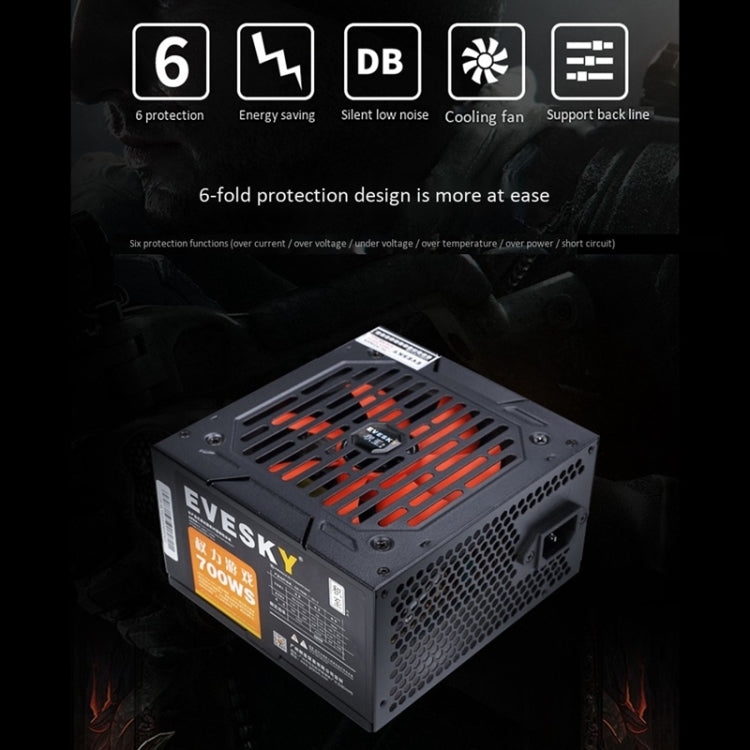

1. 6 heavy protection design: overcurrent / overvoltage / undervoltage / over temperature / over power / short circuit
2. Vortex fan blade fan frame cooling design, energy efficient, quiet and low noise

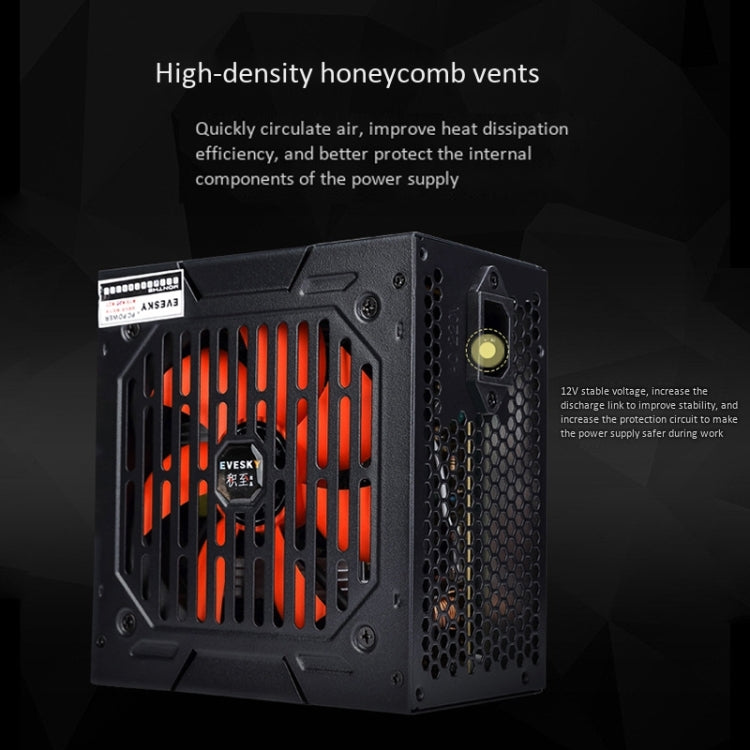

3. High-density honeycomb cooling holes, better protection of internal components of the power supply
4. 12V stable voltage, work more safely
5. Support back alignment, a variety of interface configuration

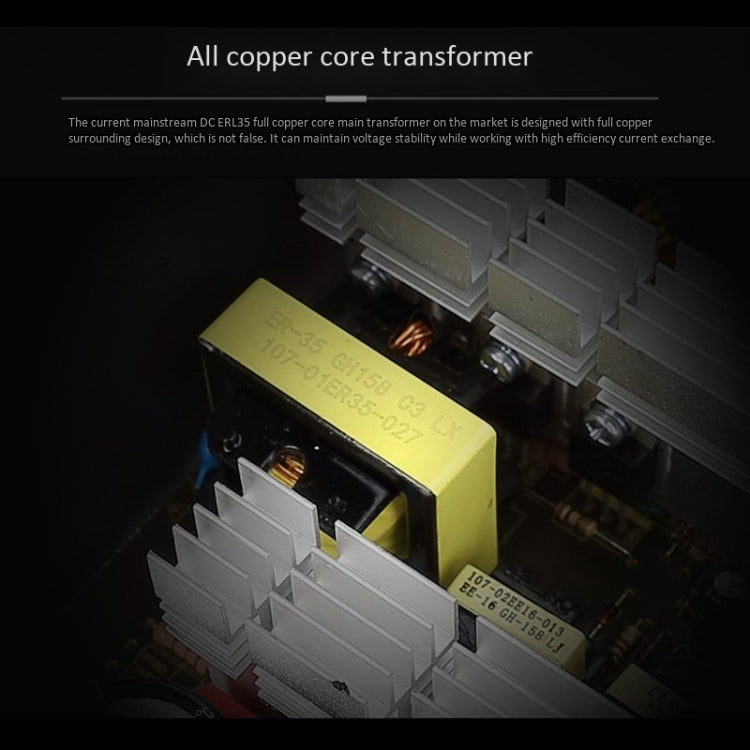

6. Galvanized double magnetic core filter, built-in dual capacitors, full copper transformer
Parameters:
1. Type: ATX power supply
2. Rated power: 500W
3. Fan: 12 cm hydraulic fan
4. PFC: non-active PFC
5. Efficiency: 80%
6. Input voltage: 220-240VAC
7. Support wide range: support
8. Support temperature control: Yes

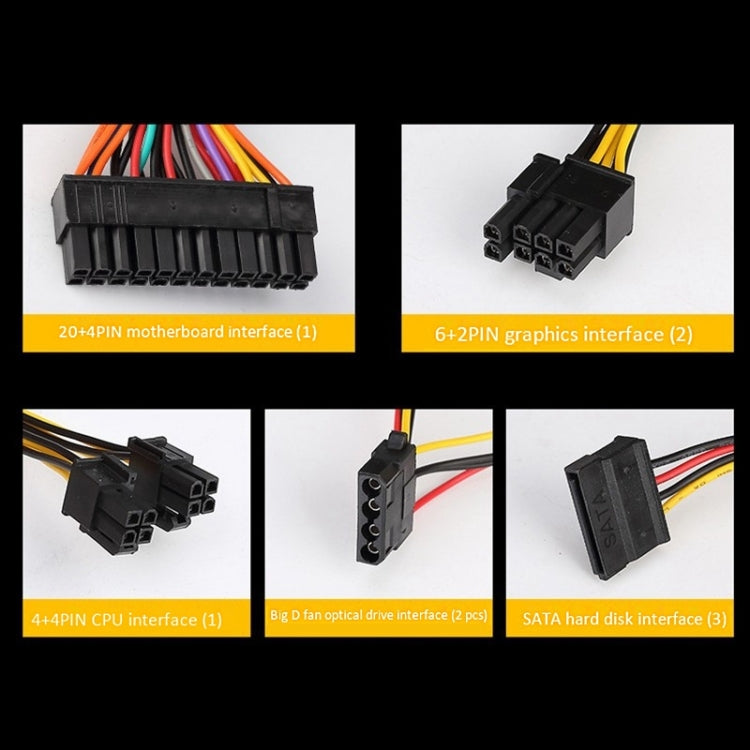

9. Main power supply interface: (20+4) P x 1
10. CPU 12V power supply interface: (P4+4) x 1
11. D-type 4PIN interface: 2
12. SATA interface: 3
13.6PIN+2 PCI-E interface: 1
14. Peak: 700W
15. Power cord length: 1.5m
Fan parameters:
1. Fan size: L120 x W120 x H25mm
2. Bearing: hydraulic
3. Rated current: 0.18Amp
4. Cooling method: air-cooled
5. Fan speed: 900-1700RPM +/- 10%
6. Rated voltage: 12V
Specification:
| Package Weight |
| One Package Weight |
1.30kgs / 2.87lb |
| One Package Size |
20cm * 15cm * 12cm / 7.87inch * 5.91inch * 4.72inch |
| Carton Weight |
30.00kgs / 66.14lb |
| Carton Size |
54cm * 40cm * 32cm / 21.26inch * 15.75inch * 12.6inch |
| Loading Container |
20GP: 385 cartons * 20 pcs = 7700 pcs
40HQ: 895 cartons * 20 pcs = 17900 pcs
|
|
