Description

1. The oscilloscope has a real-time sampling rate of 1GSa/s and an analog bandwidth of 100MHz x 2

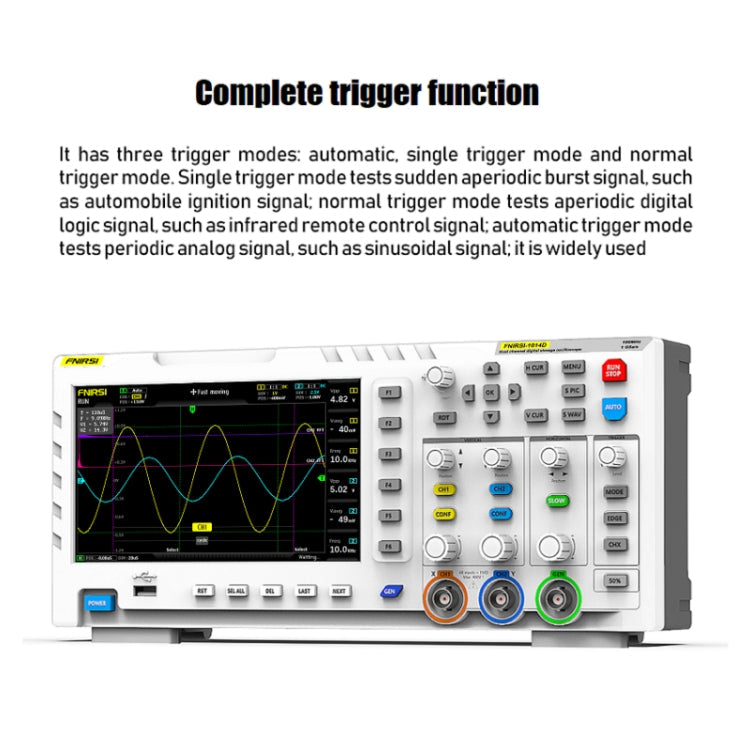

2. Complete trigger function (single/normal/automatic), both periodic analog signal and non-periodic digital signal can be used freely

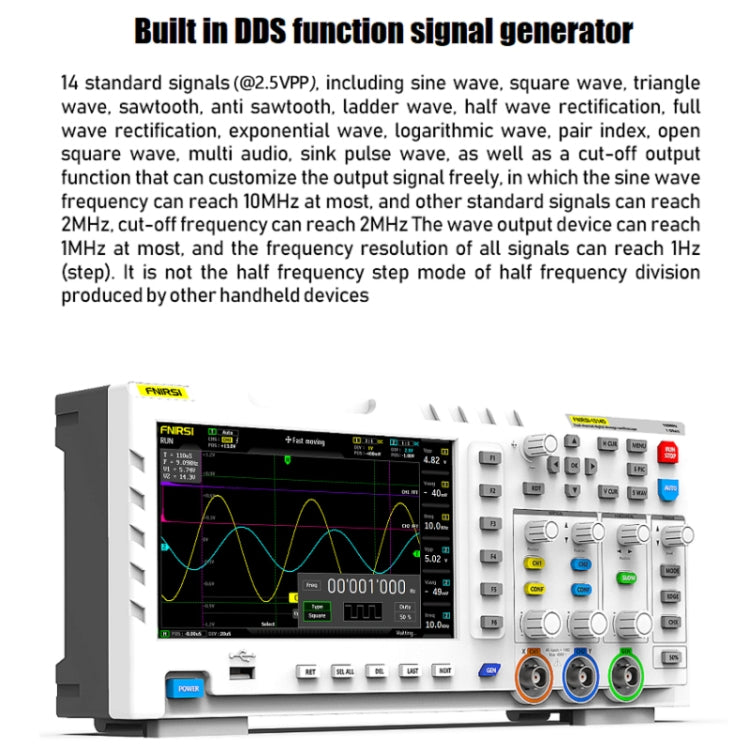

3. Built-in DDS function signal generator and the industrys original chopping output (@2.5vpp), all signal frequency steps are 1Hz, support 14 kinds of standard function signals and a customizable chopping signal, the chopping output device intercepts part or all signals
4. The complex signal measured by the oscilloscope is used as the output signal of the signal generator, which can store up to 1000 custom cut-off signals
5. The built-in high-voltage protection module can withstand continuous voltage up to 400V, so there is no need to worry about the oscilloscope burning accident caused by the probe not moving to the 10x position
7. Large time base scrolling method, which can monitor slow level changes
8. Equipped with an efficient one-key automatic display of measurement waveforms, without cumbersome adjustments
9. 7-inch 800x480 resolution high-definition LCD display

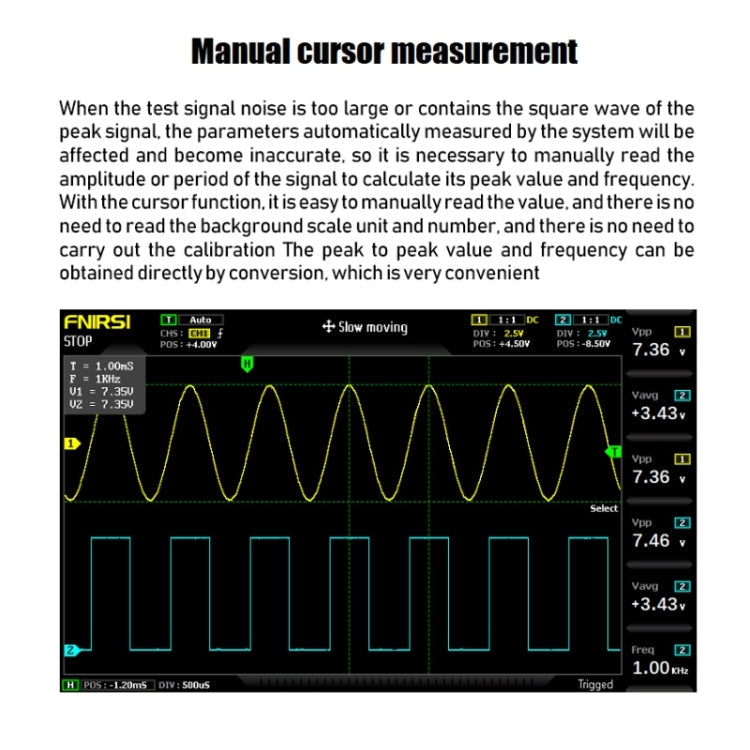

10. Cursor measurement function, when manually reading the amplitude and frequency parameters, there is no need to read the background scale unit and quantity, no need to convert, and directly obtain the peak-to-peak value and frequency. Very convenient screen capture and waveform storage function
10. Built-in 1GB storage space, can store 1000 screenshots + 1000 sets of waveform data, the storage process is simple and fast, save the current waveform with one key
11. Powerful waveform image manager, supports thumbnail browsing, viewing, viewing details, page turning, deletion, and waveform zooming in, zooming out, moving, etc., which is convenient for secondary analysis
12. The fuselage is equipped with a USB interface, which can be connected to a computer to realize the sharing of screenshots and pictures of itself, which is convenient for secondary analysis

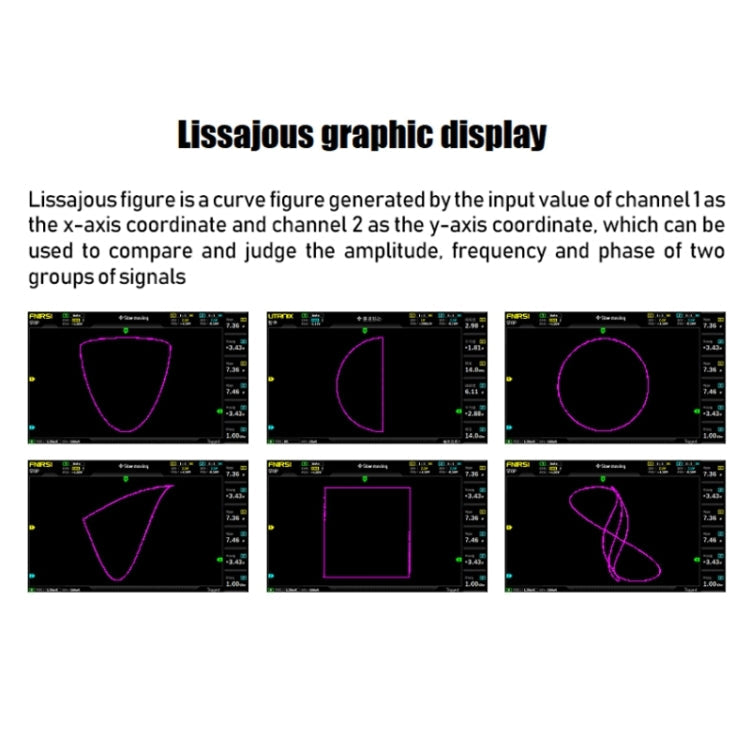

13. Graphical display function, which can compare and judge the amplitude, frequency and phase of two groups of signals
14. The FFT viewing function can estimate the harmonic components of the signal
15. Built-in DDS signal generator, supports 12 kinds of function signals
16. For high intelligent decoding algorithm, the encoder has unlimited life, intelligent anti-burn function, 1X can withstand 400V withstand voltage
17. With 100MHz x 2 analog bandwidth and @1GSa/s sampling rate (1X = 5MHz, 10X = 100MHz)
18. High measurement voltage range: 1X can measure 0~40V, 10X can measure 0~400V
19. Up to 12 parameters measurement: VPP, VP, Vmax, Vmin, Vavg, Vrms, Frequent, Duty+, Duty-, Time+, Time-, Period
20. Cursor measurement function: convenient for manual measurement of period, frequency and voltage =
21. Perfect trigger function (single, normal, automatic), freeze waveform display at any time (pause function)
22. With screen brightness adjustment function and background grid brightness adjustment function, easy to carry
23. Material: ABS
24. Analog log bandwidth: 100MHz x 2
25. Number of channels: 2 channels
26. Real-time sampling rate: 1GSa/s
27. Vertical sensitivity: 50 mV/div ~ 500 V/div
28. Horizontal time base range: 50S/div～10nS/div
29. Test voltage: 40 V (1X probe), 400 V (10X probe)
30. Storage depth: 240Kbit
31. Input resistance: 1 milliohm
32. ADC precision: 8bits
33. Coupling method: AC/DC
34. Trigger mode: single, normal, automatic
35. Trigger edge: rising edge/falling edge
36. External trigger voltage: 0~40 V
37. Expansion port: USB image export

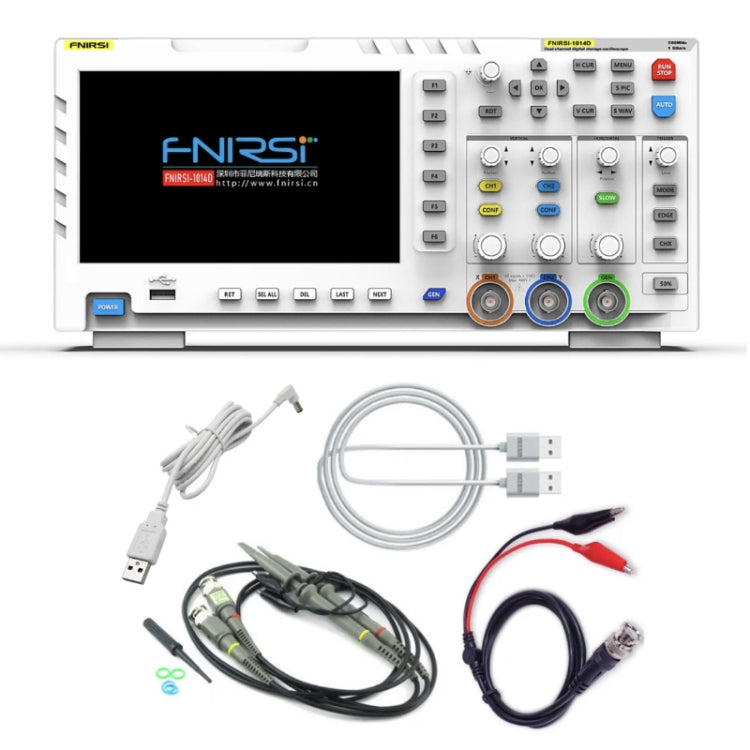

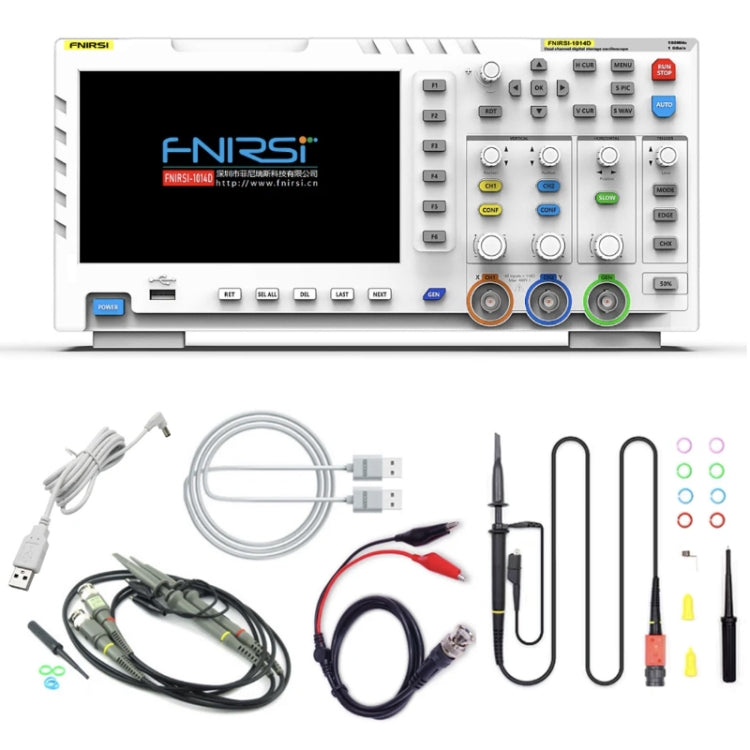

Packing list:

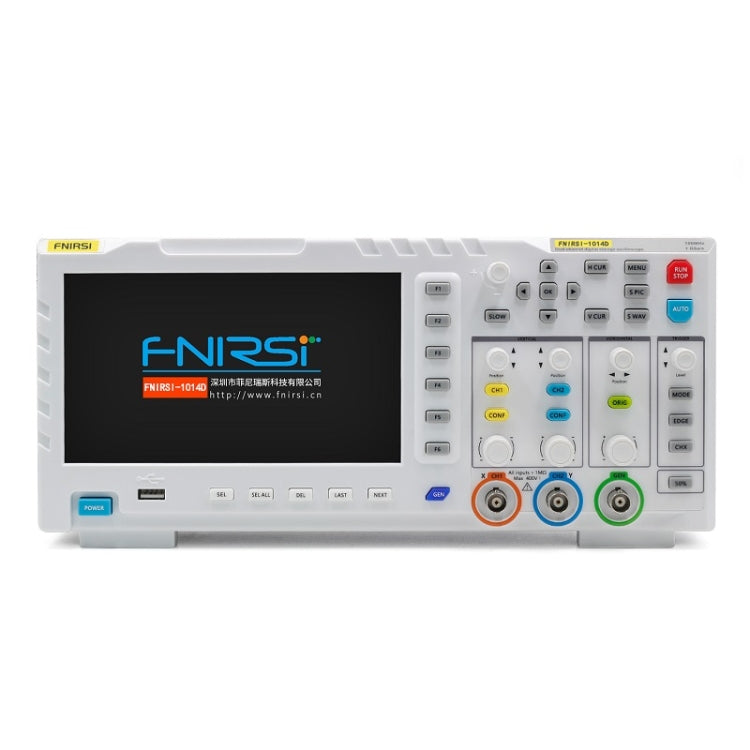

FNIRSI-1014D Oscilloscope host x 1
Matched 100MHz probes (1X and 10X) x 2
Clip x 1
US power adapter x 1
USB cable x 1
English user manual x 1
P4100 probe (optional) x 1
