Description

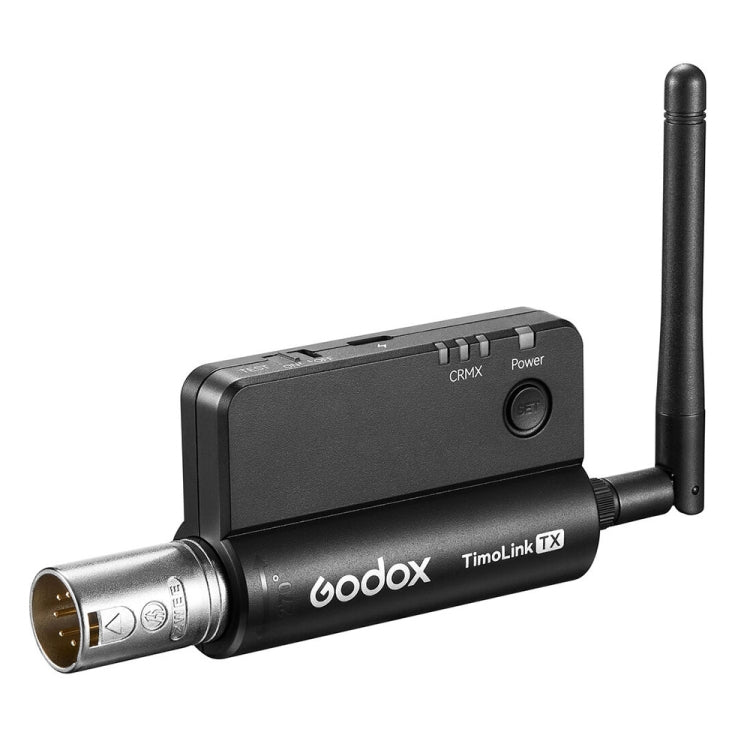

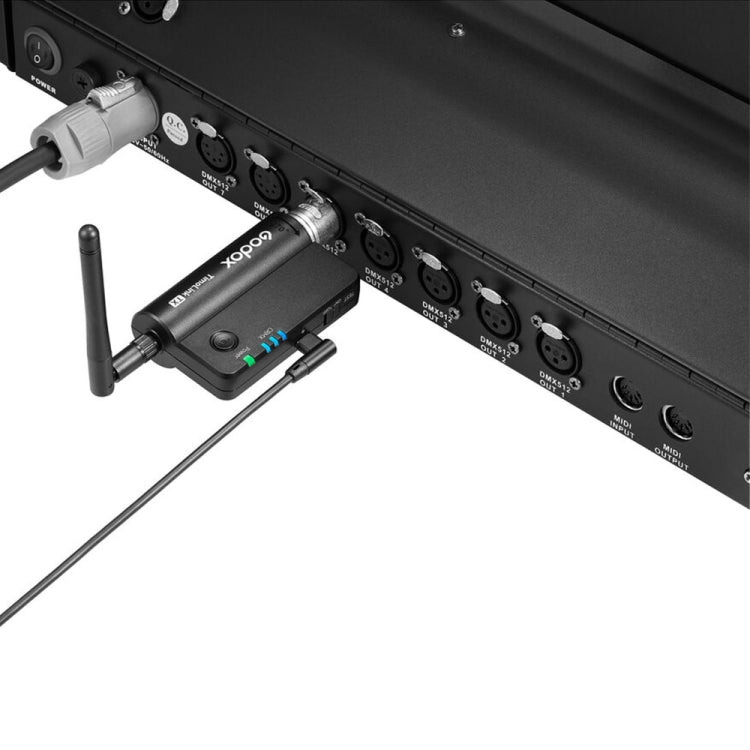

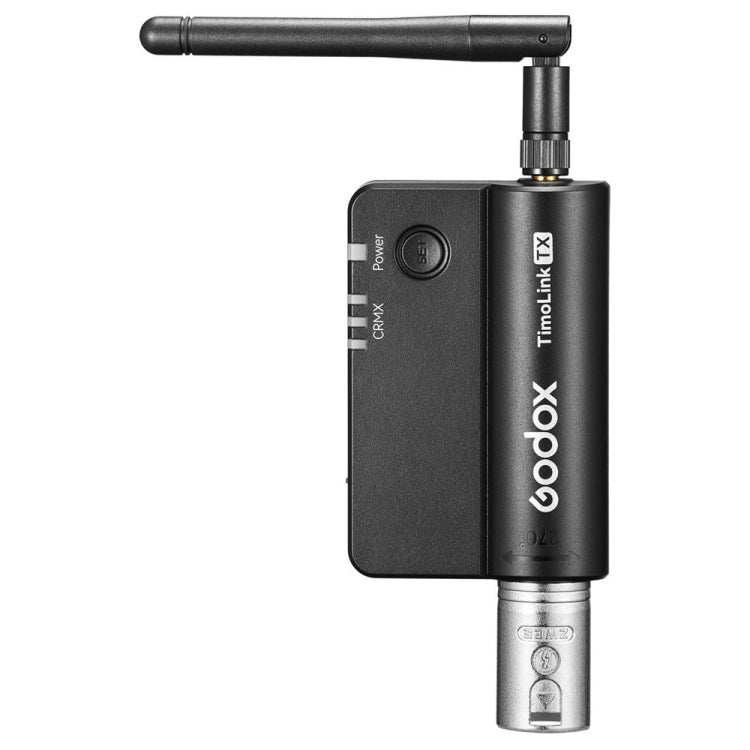

About The ProductBuilt with CRMX modules from Lumenradio, TimoLink TX and TimoLink RX are wireless DMX transmitters and receivers compatible with Godox or other fixtures featuring DMX control capabilities. The transmitter TimoLink TX converts a wired DMX console to wireless by sending signals to CRMX-compatible fixtures (such as MG1200Bi and TP Series) or receivers. As for the receiver TimoLink RX, it works perfectly with DMX-compatible fixtures that do not include wireless modules (such as LD Series and some of UL Series, TL Series and KNOWLED M Series) and enables them to achieve wireless DMX control. TimoLink TX and TimoLink RX are ideal for filmmaking, broadcasting and other scenes where wireless DMX is needed.

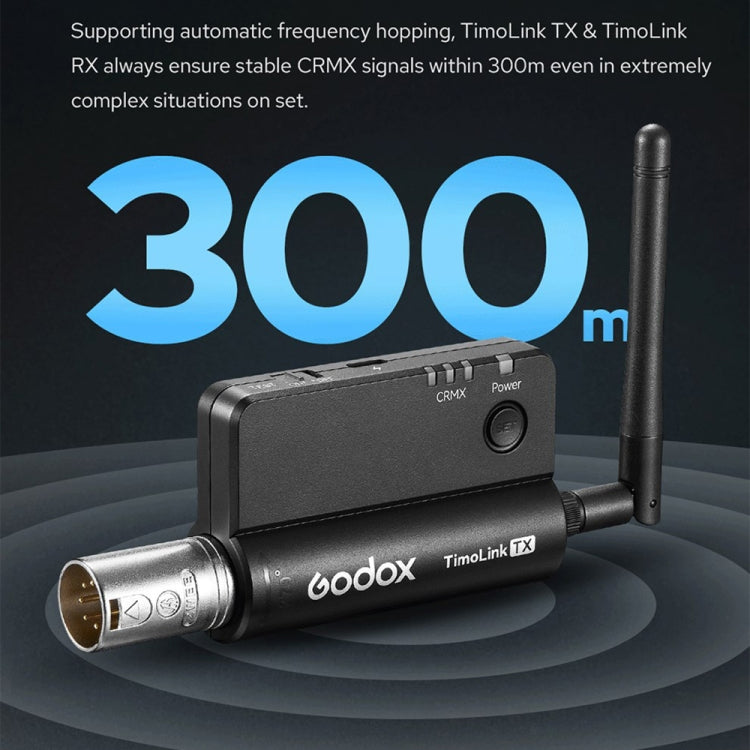

1. Automatic Frequency Hopping: Supporting automatic frequency hopping, TimoLink TX & TimoLink RX always ensure stable CRMX signals within 300m even in extremely complex situations on set.

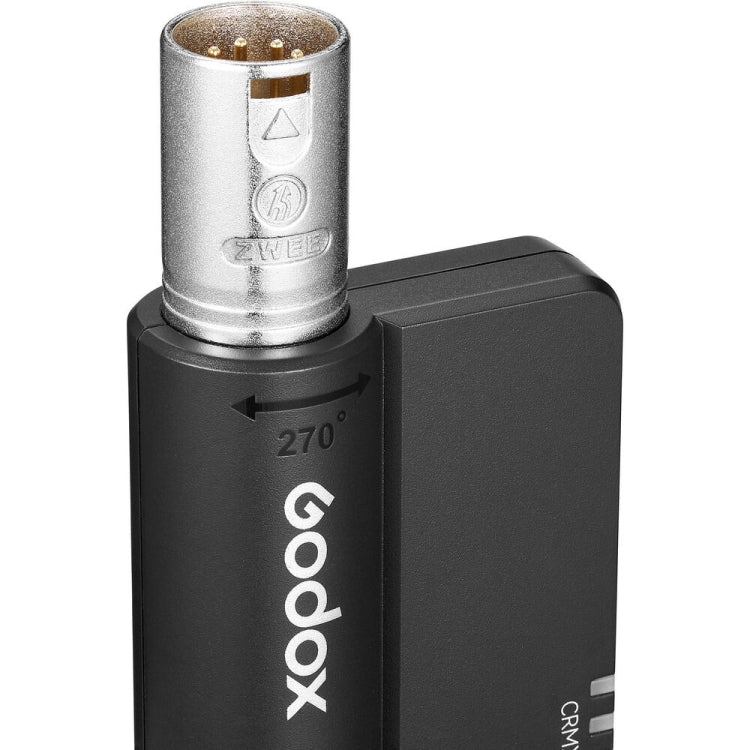

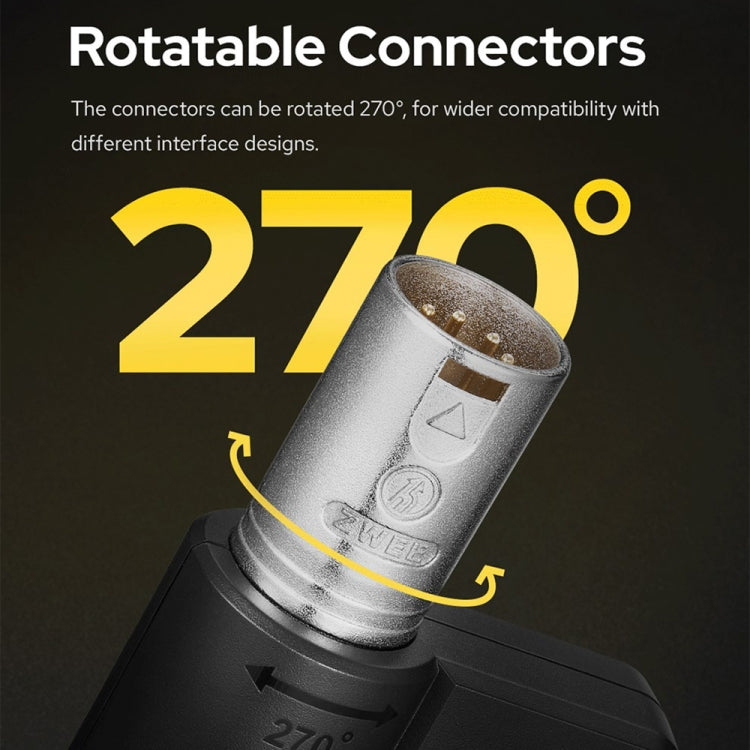

2. Rotatable Connectors: The connectors can be rotated 270 degrees, for wider compatibility with different interface designs.
3. TimoLink TX:

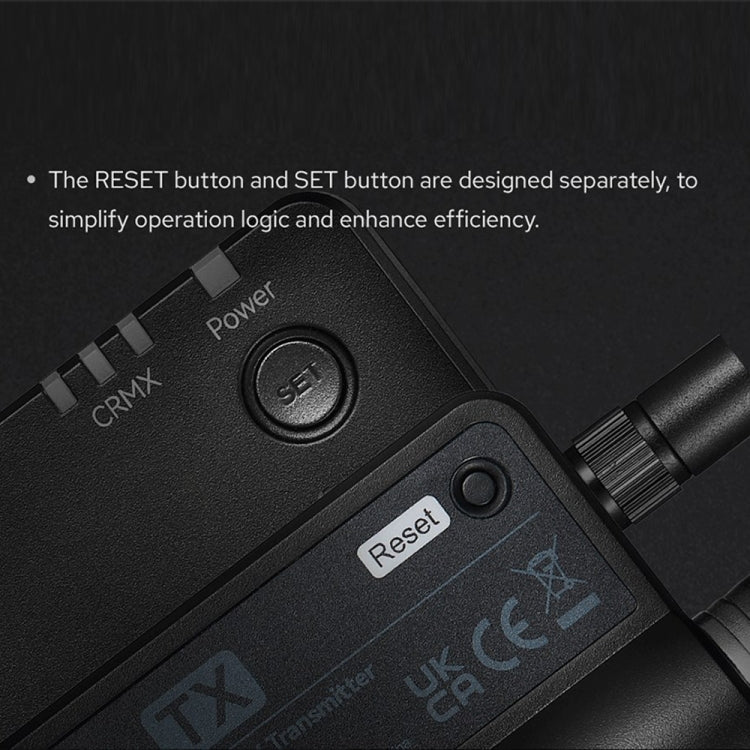

- The RESET button and SET button are designed separately, to simplify operation logic and enhance efficiency.
- We have designed a TEST feature for the transmitter TimoLink TX, with which you can easily check the connection status of lights even off the DMX board, greatly improving the efficiency of wireless DMX control.
Features1. Input Parameter: 5V/90mA
2. Colours of the signal indicator: 8
3. Power Supply: Type-C, DMX512, DMX240
4. Controlling distance: Up to 300m
5. Dimension:141mm*96mm*26mm
6. Net Weight: 89g
Specifications1. Inputs/Outputs: 1 x XLR 5-Pin (DMX) Locking Male
2. Cooling System: None
3. Wireless Range: 300 m
4. Power Source: AC Adapter
6. DC Input Power: 5 VDC at 280 mA
7. Operating Temperature: -20 to 45 degree C
8. IP Rating: None
Package List1. Wireless DMX Transmitter x 1
2. Charging Cable x 1
3. Manual x 1
Specification:
| Package Weight |
| One Package Weight |
0.16kgs / 0.36lb |
| One Package Size |
12cm * 12cm * 7cm / 4.72inch * 4.72inch * 2.76inch |
| Carton Weight |
18.00kgs / 39.68lb |
| Carton Size |
62cm * 50cm * 36cm / 24.41inch * 19.69inch * 14.17inch |
| Loading Container |
20GP: 238 cartons * 100 pcs = 23800 pcs
40HQ: 554 cartons * 100 pcs = 55400 pcs
|
|
