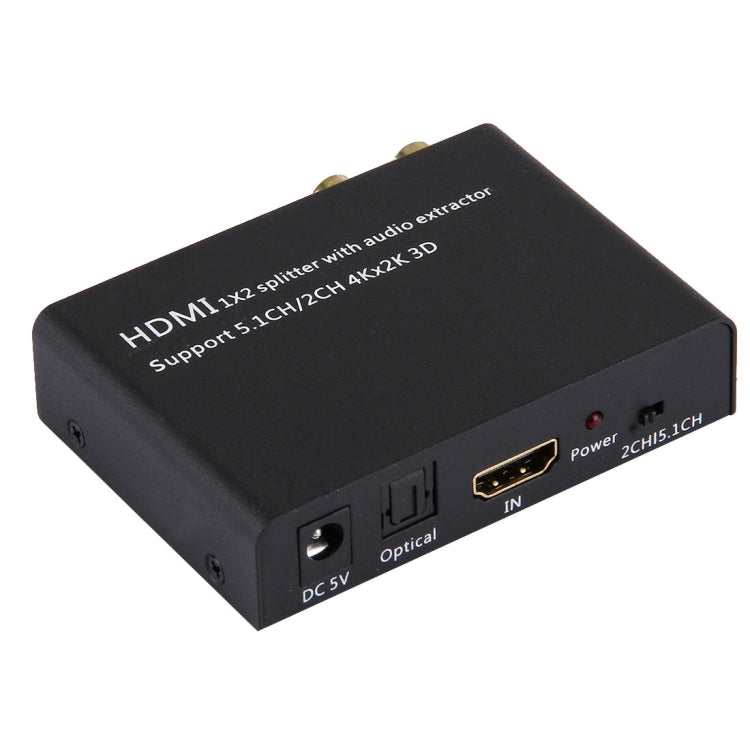

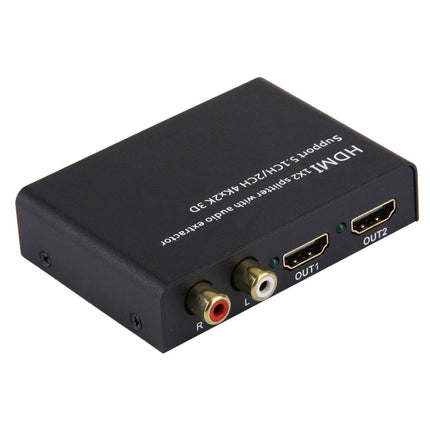

HDMI 1x2 Splitter with Audio Extractor, Support 5.1CH / 2CH, 4Kx2K, 3D

HDMI 1x2 Splitter with Audio Extractor, Support 5.1CH / 2CH, 4Kx2K, 3D

Product form

IntroductionThis 1x2 HDMI audio extractor can allow two HD display/TV connect to one HDMI source and show the same pictures.... Read more

Expedited Delivery Available!  Expedited Delivery Available!

£ 33.99 GBP

    • Guaranteed secure & safe checkout.

      shop pay
      • We take great care in ensuring that all our products meet quality standards and are packaged securely for safe delivery.
      • No hassle returns, 30 days return

      Description

      Introduction

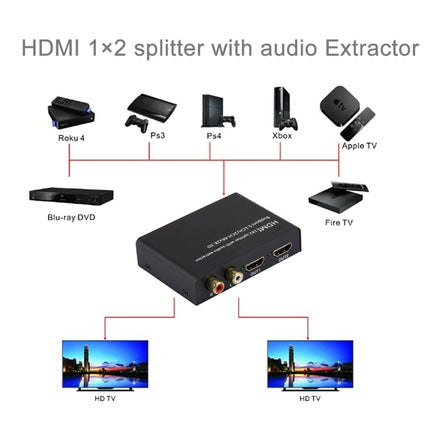

      This 1x2 HDMI audio extractor can allow two HD display/TV connect to one HDMI source and show the same pictures. It can also synchronously extract HDMI digital audio signals to digital optical output or 2 channel analog audio outputs which could be connected to your amplifier after the internal DAC audio conversion.

      Features
      1. Support HDMI 1.4b.
      2. 1 x HDMI input, 2 x HDMI output, can achieve synchronous separation of HDMI audio signal. Support 1 x SPDIF optical digital audio output, 2 channel RCA analog audio outputs.
      3. Support HDMI resolution up to 4K/30fs, 12bit deep color, full 3D video format.
      4. Support SPDIF digital audio format: Dolby digital AC3, DTS, LPCM, Support 5.1CH output.
      5. Support 2 reading modes of audio EDID, can switch between external EDID(TV) and built-in EDID (2CH/5.1CH) to select stereo output or 5.1CH audio output
      6. LED indication: when source or interface is working, corresponding LED will light up.
      7. Adopt 24bit/192KHz DAC, ensure high-quality sound.
      8. No loss of signal.
      9. Power by DC 5V/1A external power adapter.


      Specification:
      General
      Model AYSA-12V14
      Types Splitter
      Material Metal
      Input Port AC 100-240V 50/60Hz (Charger)
      Output Port DC 5V 1A (Charger)
      Interface DC IN, 1 x HDMI IN, 2 x HDMI Out, 1 x Stereo Analog Audio Output, 1 x Optical
      HDMI Resolution up to 4K/30fs
      Video Format 3D Video
      Video Color Format 12bit
      HDMI Audio Format DTS, Dolby-AC3, LPCM 5.1CH
      Working Current 600mA (Max)
      Operating Temperature -10 to 55 Degree Celsius
      Storage Temperature -20 ~ 60 Degree Celsius
      Operating Humidity 10 ~ 90 Percent RH (Non-condensing)
      Storage Humidity 5 ~ 95 % RH (Non-condensing)

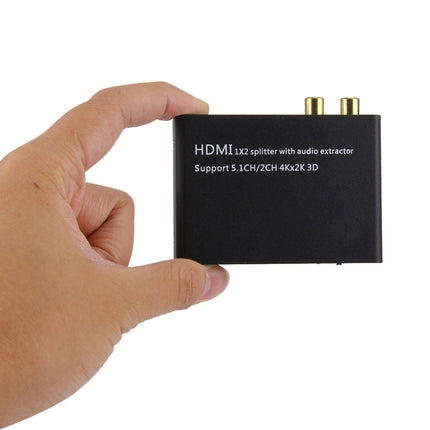

      Size 8.5x6.1x2cm
      Weight 124g

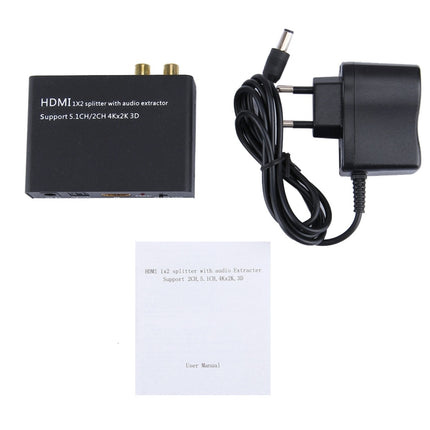

      Package Include
      Package Contents 1 x Power Adapter
      1 x User Manual
      1 x HDMI Splitter
      Package Weight
      One Package Weight 0.30kgs / 0.66lb
      One Package Size 17.2cm * 12.1cm * 5.9cm / 6.77inch * 4.76inch * 2.32inch
      Qty per Carton 40
      Carton Weight 12.20kgs / 26.90lb
      Carton Size 51cm * 32cm * 37cm / 20.08inch * 12.6inch * 14.57inch
      Loading Container 20GP: 441 cartons * 40 pcs = 17640 pcs
      40HQ: 1025 cartons * 40 pcs = 41000 pcs
