Description

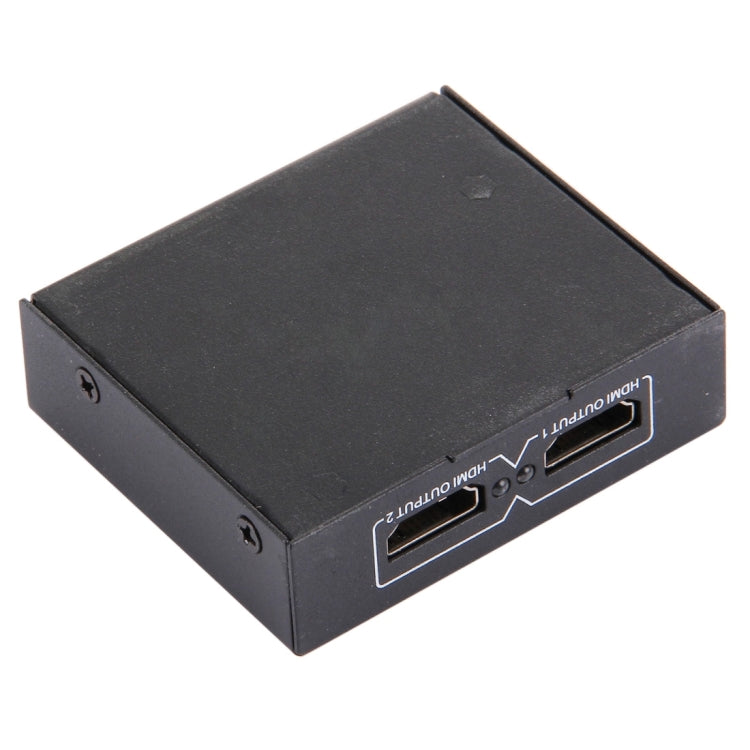

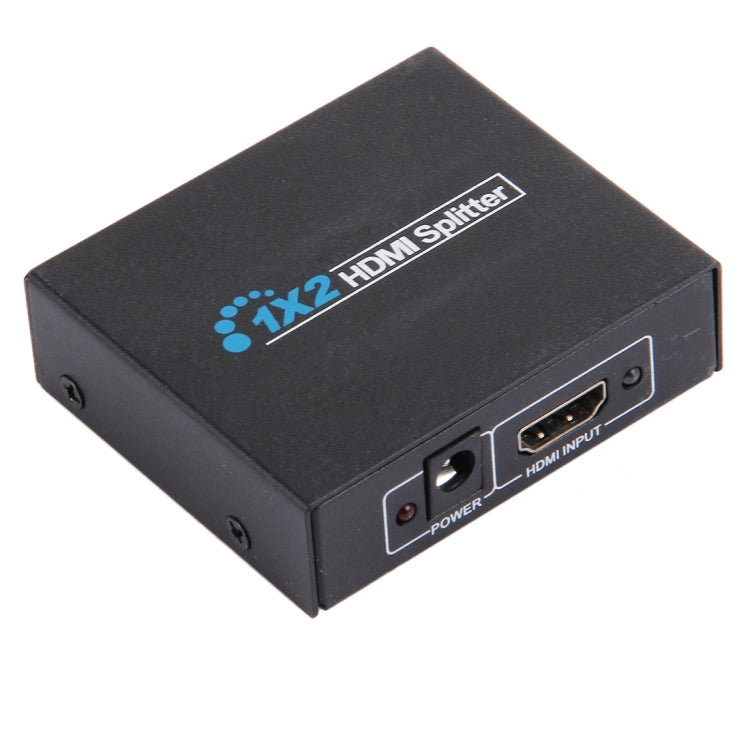

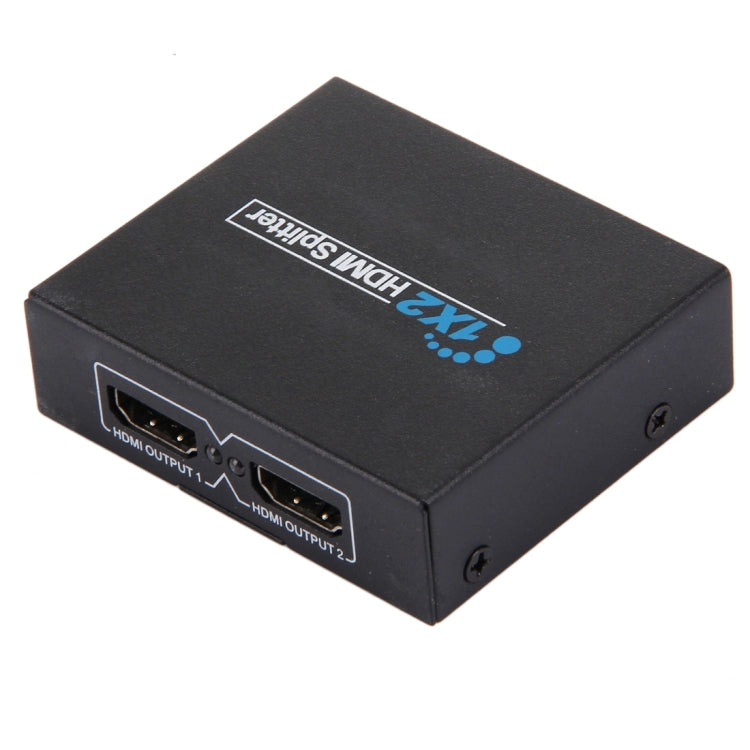

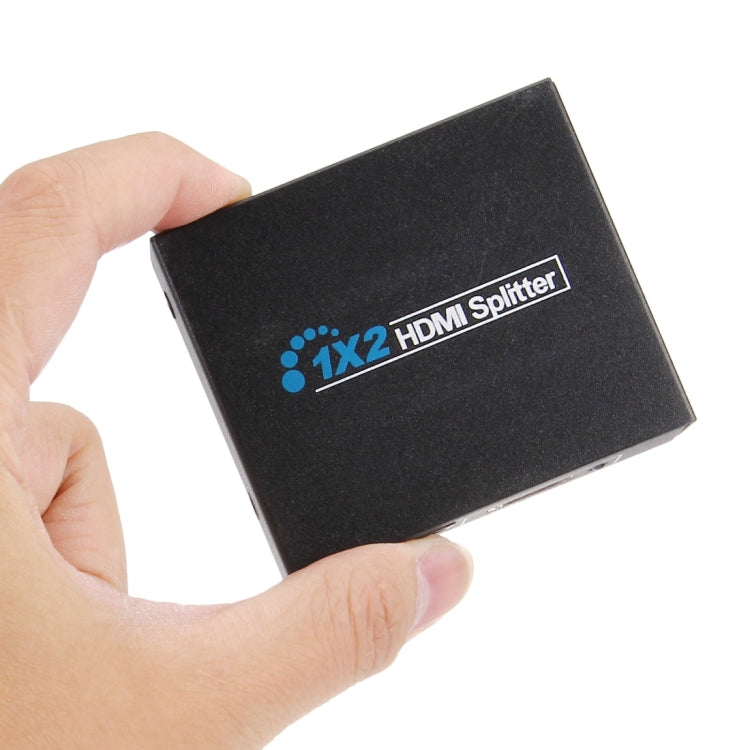

About the product1x2 HDMI Splitter distributes 1 HDMI source to 2 HDMI displays simultaneously. It offers HD video solution for super market, shopping Mall, HDTV / STB/ DVD / Projector / DVR factory, data control center, information distribution, conference room presentation, education and training, corporation showroom, luxurious house, etc..
Features1. 1 HDMI input signal split to 2 HDMI sink devices.
2. HDCP 1.4 protocol compliant.
3. 3D HDMI 1.4a video format support.
4. 3D video support including frame packing for all 3D formats up to a 297MHz TMDS clock.
5. Support display resolutions up to 4K x 2K@30Hz, 1080P@120Hz, and 1080P 3D@60Hz
6. Support deep color 30bit, 36bit, 48bit per pixel.
7. Digital audio format, as DTS-HD / Dolby-true-HD / LPCM 7.1 / DTS / Dolby-AC3 / DSD.
Specification:
| General |
| Resolution |
4000 x 2000@30Hz, 1080P 3D@60Hz, 1080P@120Hz |
| Power Supply |
DC 5.0V / 1.0A |
| Frequency Bandwidth |
2.97Gbps |
| Interface Types |
2 x HDMI Female Output, 1 x HDMI Female Input |
| Operating Temperature |
0 ~ 40 Degree Celsius |
| Storage Temperature |
-20 ~ 60 Degree Celsius |
| Operating Humidity |
20 ~ 90 Percent RH (Non-condensing) |
|
| Package Include |

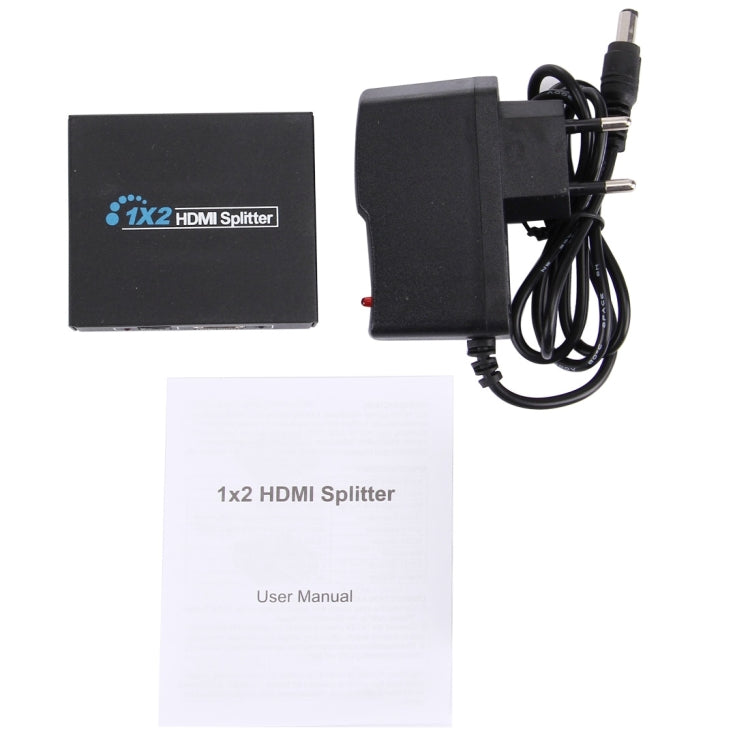

| Package Contents |
1 x Power Adapter
1 x User Manual
1 x HDMI Splitter |
|
| Package Weight |
| One Package Weight |
0.22kgs / 0.48lb |
| One Package Size |
17.5cm * 13cm * 5.5cm / 6.89inch * 5.12inch * 2.17inch |
| Carton Weight |
12.00kgs / 26.46lb |
| Carton Size |
54cm * 30cm * 37cm / 21.26inch * 11.81inch * 14.57inch |
| Loading Container |
20GP: 444 cartons * 40 pcs = 17760 pcs
40HQ: 1032 cartons * 40 pcs = 41280 pcs
|
|
