Description

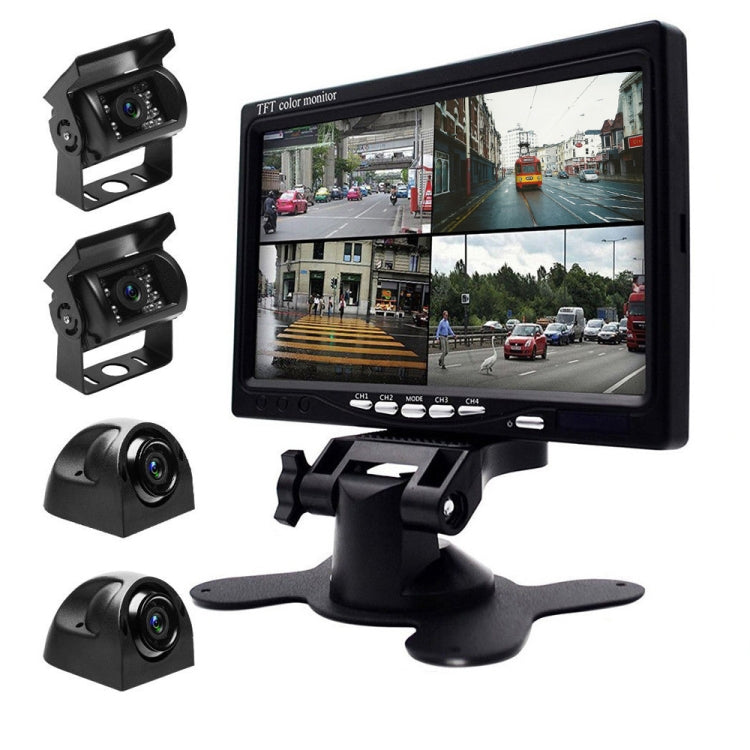

🚗 Enhance Your Driving Safety with the K0164 7-inch HD Car Rearview Monitor and Backup Camera System! 🌙

Drive with confidence and clarity, day or night, with the K0164 7-inch HD Car Rearview Monitor equipped with 18 IR Rear View Backup Four Cameras. This comprehensive system provides unparalleled visibility and safety for your vehicle. Here’s why it’s a game-changer:

🔹 7-inch HD Monitor: Enjoy crystal-clear visuals with the high-definition 7-inch monitor, providing a wide and detailed view of your surroundings.

🔹 18 IR : Equipped with 18 infrared lights, the cameras deliver excellent capabilities, ensuring you can see clearly in low-light conditions or complete darkness.

🔹 Four Cameras for Full Coverage: The system includes four cameras to cover all angles around your vehicle – front, rear, and sides. This comprehensive coverage eliminates blind spots and enhances overall safety.

🔹 Easy Installation: Designed for easy installation, the system can be set up in no time. The cameras and monitor come with all necessary mounting hardware and instructions.

🔹 Weatherproof Cameras: Built to withstand various weather conditions, the cameras are water-resistant and durable, ensuring reliable performance in rain, snow, or shine.

🔹 Adjustable Viewing Angles: The cameras offer adjustable angles, allowing you to customize the view to your specific needs and preferences.

🔹 Real-time Monitoring: Provides real-time video feed, helping you navigate tight spaces, reverse safely, and park with precision.

🔹 Wide Compatibility: Compatible with most vehicles, including cars, trucks, RVs, and trailers. A versatile solution for any type of vehicle.

🔹 Enhanced Safety Features: Helps prevent accidents and collisions by providing a clear view of obstacles, pedestrians, and other vehicles around you.

🔹 User-friendly Interface: The monitor features an intuitive interface with easy-to-use controls for switching between camera views and adjusting settings.

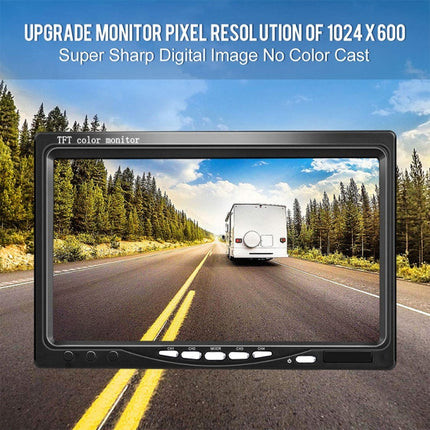

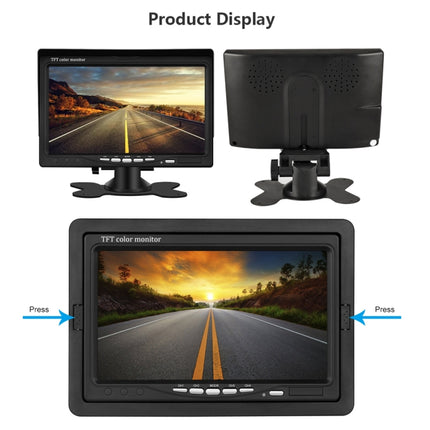

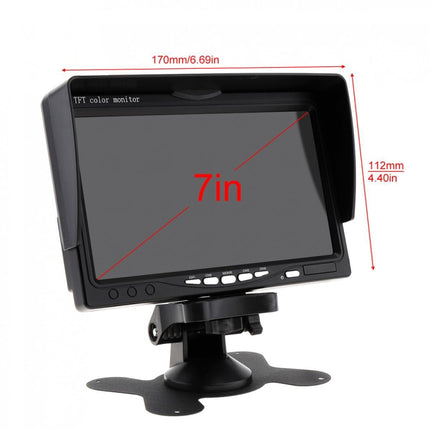

7 inch Color TFT LCD Monitor:
1. Image can be switched left and right, up and down.
2. Panoramic driving security system. You can see 4 direction scenery on a display outside the car.
3. 4 Channels input: V1/V2/V3/V4 - Screen Size: 7 inch * Housing Material: ABS
4. Resolution: 800 x 480 RGB
5. Contrast???500 : 1
6. Display Mode: 16 : 9
7. Power Supply: DC 9-36V
8. Video Frequency: PAL / NTSC
9. Operation Temperature: -20 ~ 60 degrees
10. Drive scheme: MST703
11. Segmentation scheme: DM5858
12. Decoding chip:7440
13. Minimum illumination: 0.1LUX
14. Language: Japanese/Russian/German/French/Spanish/Portuguese/Italian/Chinese/English

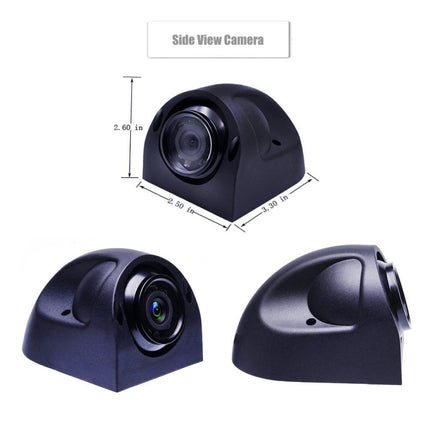

Car Side View Camera:
1. Normal viewing and NO GUIDE LINE
2. Chip: Color 1/4 Sharp CMOS
3. Format: PAL / NTSC
4. Resolution: PAL: 500 (H) x582 (V) / NTSC: 510 (H) x492 (V)
5. Horizontal: 420TV Lines
6. distance: 10M
7. SNR: more than 48dB (AGC OFF)
8. Operating temperature: -10 to +50 degrees RH95 % Max
9. Storage temperature: -25 to +60 degrees RH95 % Max
10. White Balance: Auto
11. Power supply: DC 9V-36V

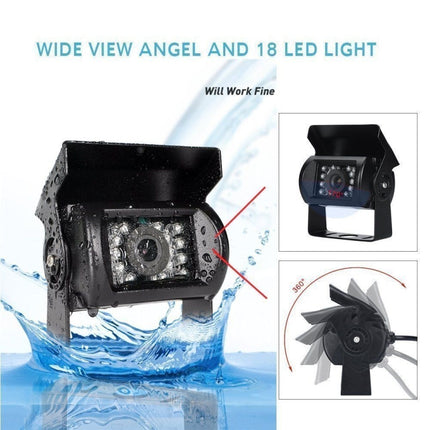

Front /Rear View Camera:
1. Front Camera for normal viewing and NO GUIDE LINE
2. Rear Camera for mirror viewing and with Guide Line
3. Auto IR Cut : Built-in 18 IR LED lights, good performance in day and night.
4. Automatically switches to IR when light level is low. Night visible range to 30 ft.
5. IP68 Waterproof: High strength weatherproof lens
6. Image Sensor: CMOS 7030 HD Sensor
7. TV System: NTSC/PAL
8. Resolution: 420 TV lines
9. Video Output: RCA connector,1.0vp-p 75OHM
10. S/N Ratio: Better than 48db
11. Power Supply: DC 9V -DC 24V
12. Work Temperature: - 20 ~ +60 degrees
13. White Balance: Auto Tracing

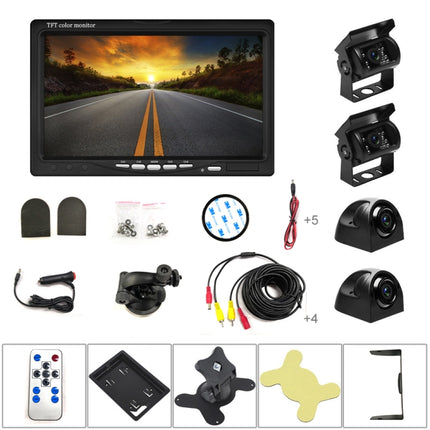

Package Contains:
1 x Quad Split Monitor
2 x Side View Camera
2 x Rear View Camera
4 x Video cable
5 x Power Cable
1 x Suction Cup Mount
1 x Dashboard Stand
1 x IR Remote Control
1 x Installation Instructions
