Description
1) Product Features:

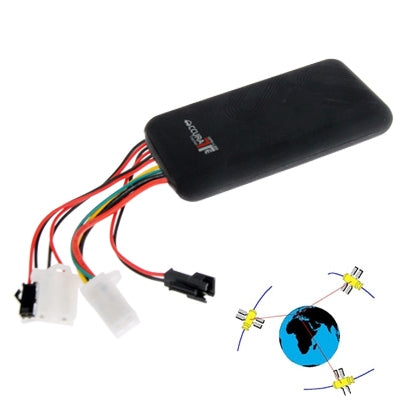

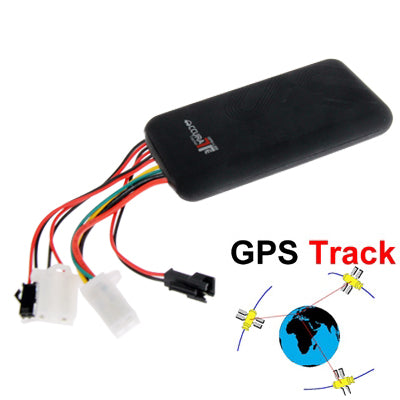

Practical vehicle tracker
High sensitivity GPS receiver chip
Built-in high sensitivity GPS antenna, super reception
Highly integrated design, with dual built-in antenna (GSM, GPS) design
Built-in switching power supply, wide voltage input range
Built-in vibration sensor, to achieve intelligent vehicle anti-theft
Support ACC detection, vehicle start alarm
An external relay, remote control vehicle fuel and electricity
Specific numbers can be set three alarm and burglar alarm for SOS
SOS alarm button can be connected for emergency calls for help
An external microphone, remote voice monitoring function
Built-in backup battery, illegal cutting line to achieve the alarm
Compatible with external serial communication device
GSM quad-band system of global common
2) Product Specifications:
GSM Frequency: 850/900/1,800/1,900MHz
GPS Chips: SIRF Star III
GPRS: Class 12, TCP/IP built-in GSM module
GPS Channels: 20
Tracking Sensitivity: -159dBm
Acquisition Sensitivity: -144dBm
Locating Time Cost:
---Hot Start: <2 sec (open sky)
---Warm Start: <15 sec
---Cold Start: <38 sec (open sky)
Antenna: Built-in GSM quad band antenna, GPS high gain antenna.
Battery: 450mAh
GPS Accuracy Rate: 5M-10MM
Voltage Input Range: 9-36V DC
LED Indicator: Three LED indicator: GPS-blue, GSM-green, Power-red
3) Application Environment:
--Operating Temperature: -35 to+70℃
--Operating Humidity: 5% to 95% non-condensing
Size: 97 x 50 x 15 mm / 3.82 x 1.97 x 0.59 inch
Net Weight: 69 g / 2.43oz
Color: Black
Specification:
| Package Weight |
| One Package Weight |
0.21kgs / 0.46lb |
| One Package Size |
16cm * 11cm * 5.5cm / 6.3inch * 4.33inch * 2.17inch |
| Carton Weight |
14.40kgs / 31.75lb |
| Carton Size |
44cm * 30cm * 33cm / 17.32inch * 11.81inch * 12.99inch |
| Loading Container |
20GP: 612 cartons * 50 pcs = 30600 pcs
40HQ: 1421 cartons * 50 pcs = 71050 pcs
|
|
