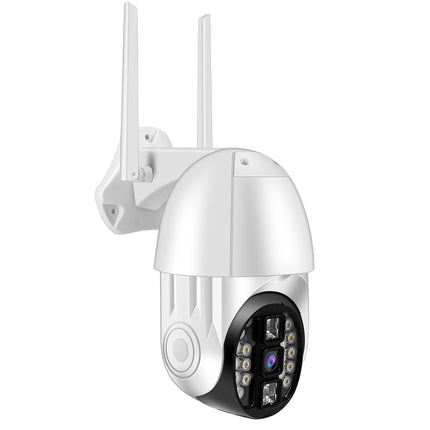

Description
Features:
1. Support 1920x1080P resolution, watch high-definition picture
2. Equipped with dual-filter Ir-cut, automatically switch night vision at night, and can see a distance of 15 meters
3. Supports motion detection, if there is an object moving, it will send an alarm; if there is an alarm message, the APP will send a push notification
4. If someone intrudes, it will record or take a screenshot
5. Support remote real-time viewing of the screen on the mobile phone; you can view the video stored in the memory card for playback viewing; it can perform two-way voice on the mobile phone and the other party
6. The video is encoded as H.264, the playback and viewing video occupies a smaller memory, and the picture is more high-definition
7. A server that can support video storage in the cloud to avoid local storage loss
8. Support 64GB TF card, speed needs Class10
9. Able to realize the screen mirroring up and down, left and right flip
10. Support one-key reset
11. Support 4 mobile phones to watch at the same time, not support to watch on the computer, can share the camera with family and friends around, watch together
Product specifications:
1. Material: ABS
2. APP: v380
3. Operating system: IOS/Android
4. Prompt language: Chinese and English
5. APP language: follow the phone
6. Processor: AK3918E-V300
7. Image sensor: SENSOR2232
8. Built-in lens: 3.6mm
9. Lighting configuration: 2 infrared lights, 18 white lights
10. Focusing method: manual
11. Aperture: fixed 6mm
12. Viewing angle: 360 degrees
13. Head shaking range: 355 degrees left and right, 90 degrees up and down
14. System interface: power interface, TF interface, network cable interface
15. Power supply: 12V 2A, 5W
16. Working temperature: 0-40 degrees Celsius
17. Recording method: manual recording, alarm recording
18. Video frame rate: 1-30 frames
19. Recording time: 5 minutes by default
20. Wireless network: WIFI (IEE802.11b/g/n)
21. Network frequency range: 2.4GHZ-2.4835GHZ
22. P2P WIFI connection: support
23. AP hotspot connection: support
24. Wired network: support
25. 4G/5G network: not supported
26. Network protocol: HTTP, FTP, TCP/IP, UDP, SMTP, DHCP, PPPOE, DDNS, UPNP
27. Firmware upgrade: remote upgrade via network
Packing list:
Camera x 1
Power plug x 1
Manual x 1
Bracket x 1
Screw pack x 1
Specification:
| General |
| Performance |
Motion detection, Night Vision, Real-time video capture and recording, Image Flip,, Two-way voice intercom, Alarm Function |
| Memory |
up to 64GB (not included) |
|
| Network |
| Wireless |
WiFi 802.11 b/g/n |
| Protocol |
DDNS, UDP, SMTP, UPNP, DHCP, PPPOE, FTP, HTTP, TCP/IP |
|
| System / Hardware |
| Mobile Access |
Android, iPhone OS |
| Operating System |
IOS/Android |
| Pan/Tilt-Horizontal Angle |
355 degrees |
| Pan/Tilt-Vertical Angle |
90 degree |
|
| Media Format |
| Video Compression Format |
H.264 |
| Resolution |
1080P(1920*1080) |
|
| Night Vision |
| Configuration |
2 infrared LEDs |
|
| Physical Environment |
| Operate Temperature |
0 to 40 Degree Celsius |
|
| Package Include |
| Package Contents |
1 x Camera
1 x Power Adapter (US, UK, EU, AU Optional)
1 x User Manual
1 x Screws Set
1 x Holder |
|
| Package Weight |
| One Package Weight |
0.77kgs / 1.69lb |
| One Package Size |
23cm * 19cm * 12cm / 9.06inch * 7.48inch * 4.72inch |
| Carton Weight |
19.20kgs / 42.33lb |
| Carton Size |
48cm * 59cm * 50cm / 18.9inch * 23.23inch * 19.69inch |
| Loading Container |
20GP: 188 cartons * 24 pcs = 4512 pcs
40HQ: 437 cartons * 24 pcs = 10488 pcs
|
|
