Description

SPECIFICATIONS

Brand Name: UGREEN

Connector B: HDMI-compatible

Gender: Female-Female

Model Number: CM568 --90512

Origin: Mainland China

Type: HDMI-Compatible Cables

Connector A: HDMI-compatible

Package: Yes

Choice: yes

 UGREEN

◎ Brand Newest Launch

【Designed for Multiple Gaming Consoles】Connect 5 of your favorite gaming devices such as PS5, Xbox, Switch, Roku, and laptop to your TV with just one input port. With 5 LED indicators that clearly show you which port is active.

【4K@60Hz Resolution】Immerse yourself in an incredible viewing experience with 4K@60Hz resolution and backward compatibility up to 4K@30Hz, 25601440@120Hz, and 19201080@240Hz. HDMI switcher supports HDMI 2.0/1.4, HDCP2.2/1.4, VRR, and Dynamic HDR Chroma 4:2:0 / 4:2:2 / 4:4:4. All HDMI ports support HDR/3D/CEC.

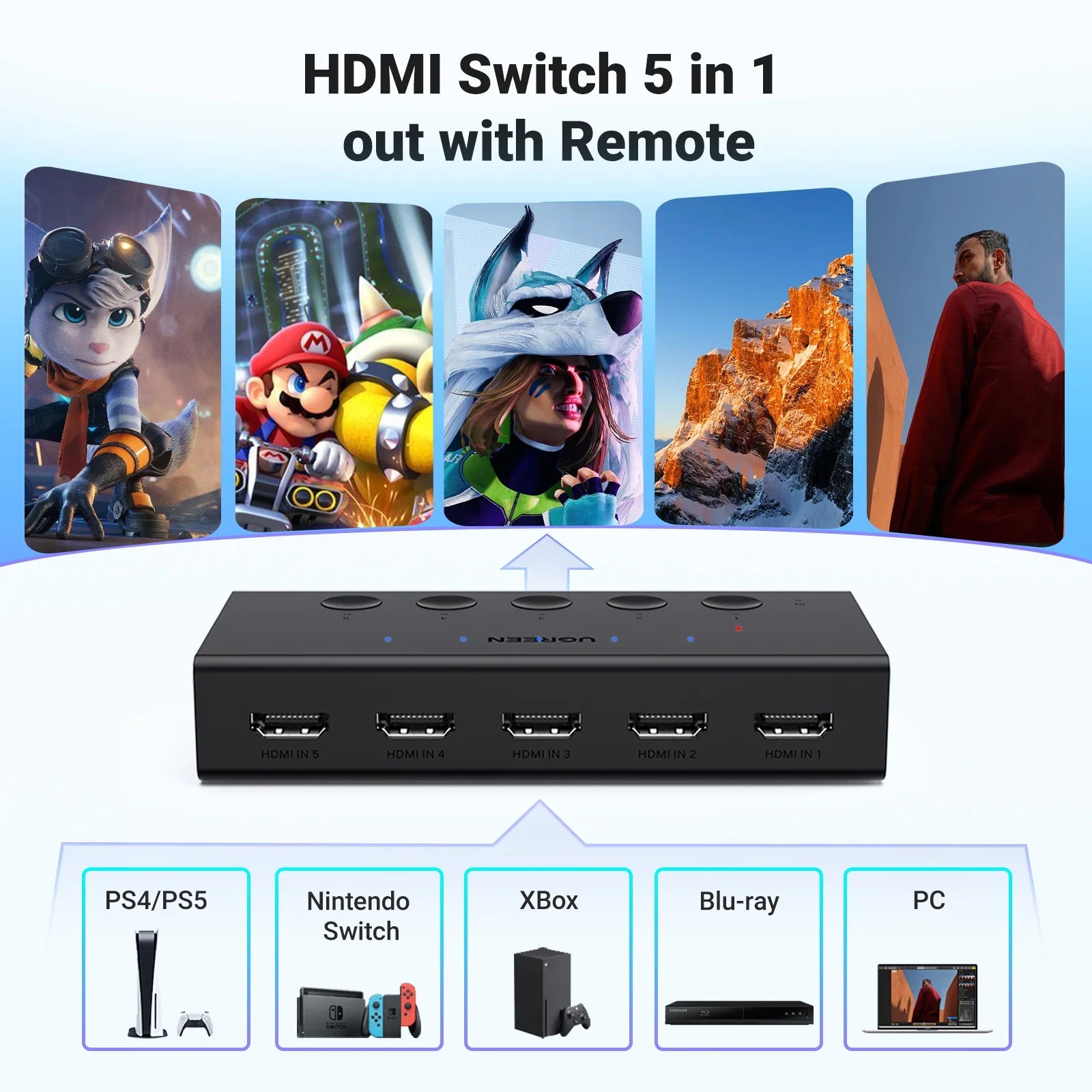

5 IN 1 OUT

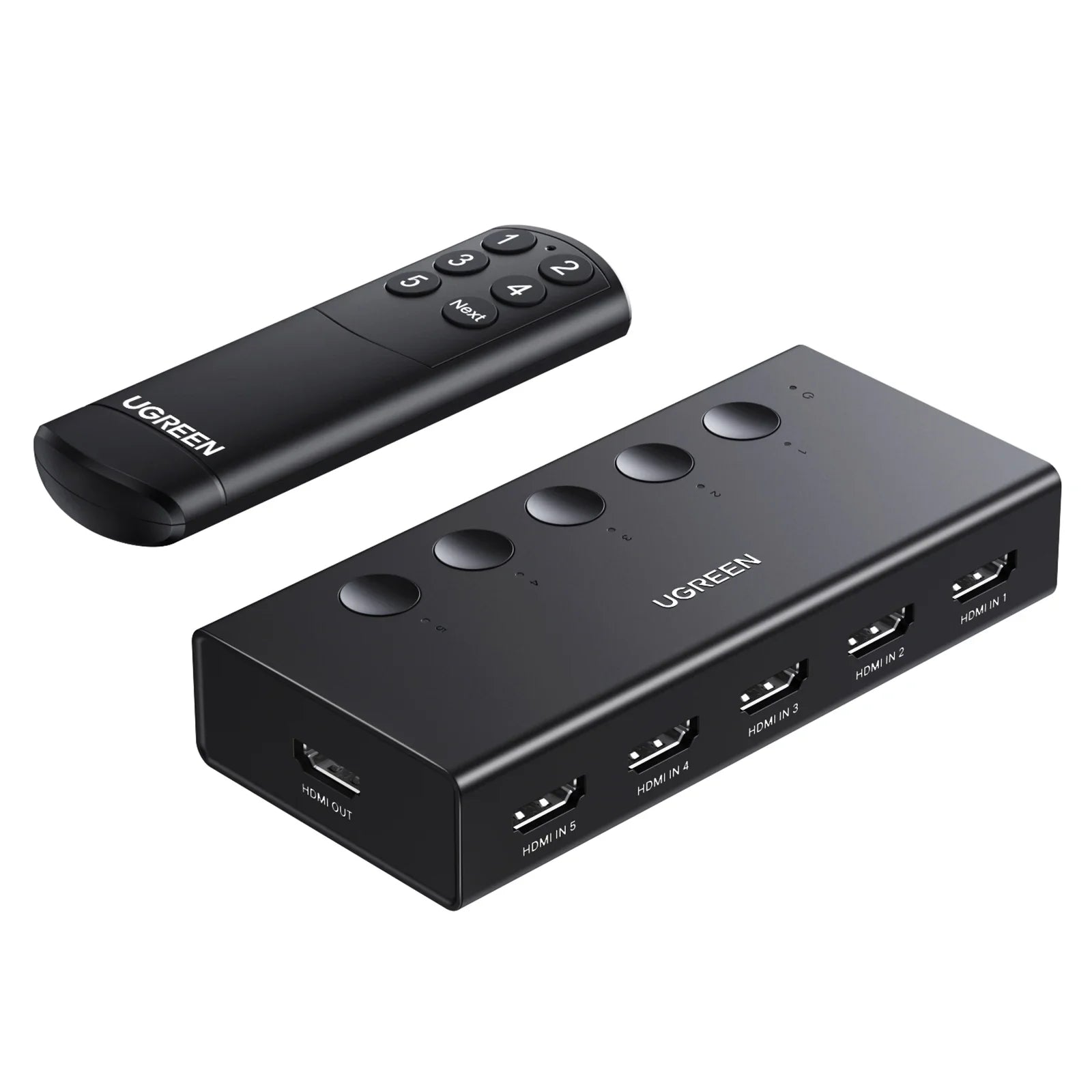

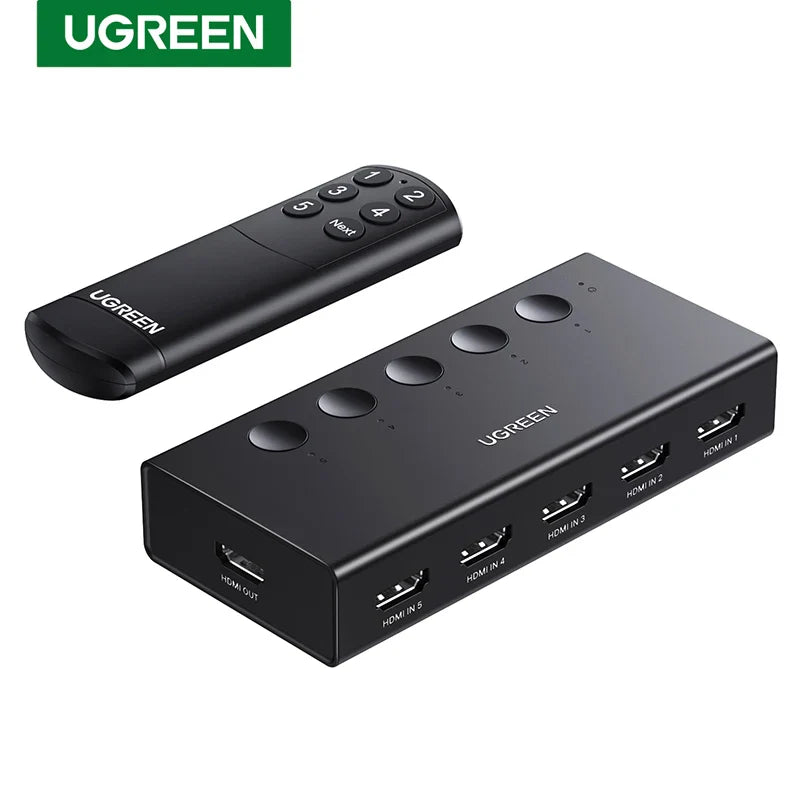

4K HDMI Switch

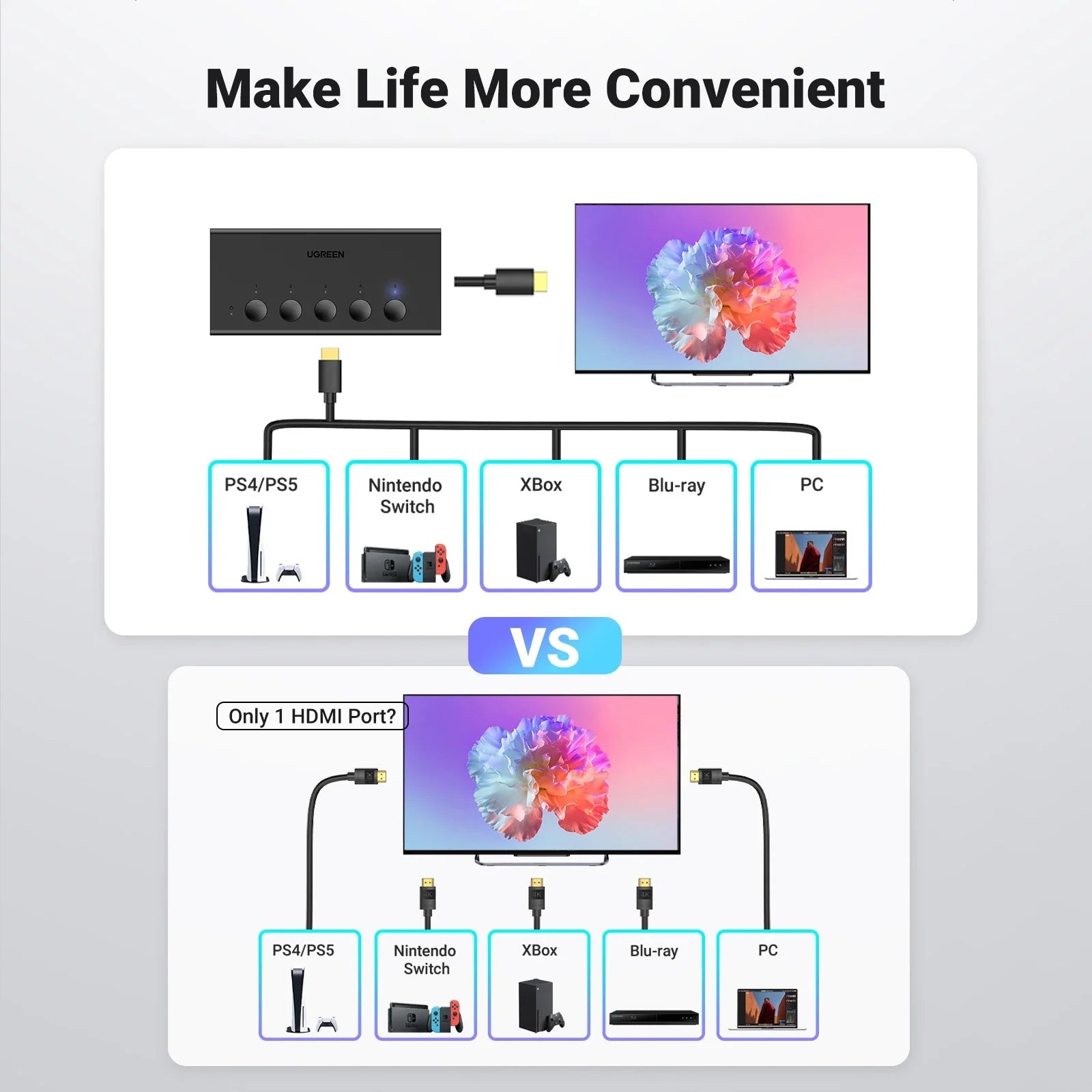

Made for Multi Game Consoles. This HDMI Switch can connect 5 source devices to 1 display without plugging and unplugging.

Reduces lag and frame loss for smoother gameplay

Specifications

Input: 5×HDMI, 1×IR

Output: 1×HDMI

Resolution: Up to 4K@60Hz

HDCP Version: HDCP 2.3 and backward compatible

Color Depth: 24-bit/30-bit/36-bit

Pixel Formats: RGB/YCbCr 4:4:4/YCbCr 4:2:2/YCbCr 4:2:0

Audio Formats: Supports LPCM/DTS/DSD, and 2.0/2.1/5.1/7.1 channel

Audio Sampling Rate: 24-bit/192 kHz Max

Function Supported: Supports 3D Visual Effects/HDR10/HDR10+/IR remote control with transmission distance ≤10m

Switching Mode: Button/Remote Control

Power Supply Input: USB-C 5.0V=1.0A Max

Compatible Systems: Windows/macOS/Linux

Dimensions:L127×W59×H25 (mm)/L5×W2.3×H0.9 (inch)

Specifications

• Product Assurance: Quality Standards

Pros and cons

• Sustainably produced
• Ideal for everyday use
