Description
Overview

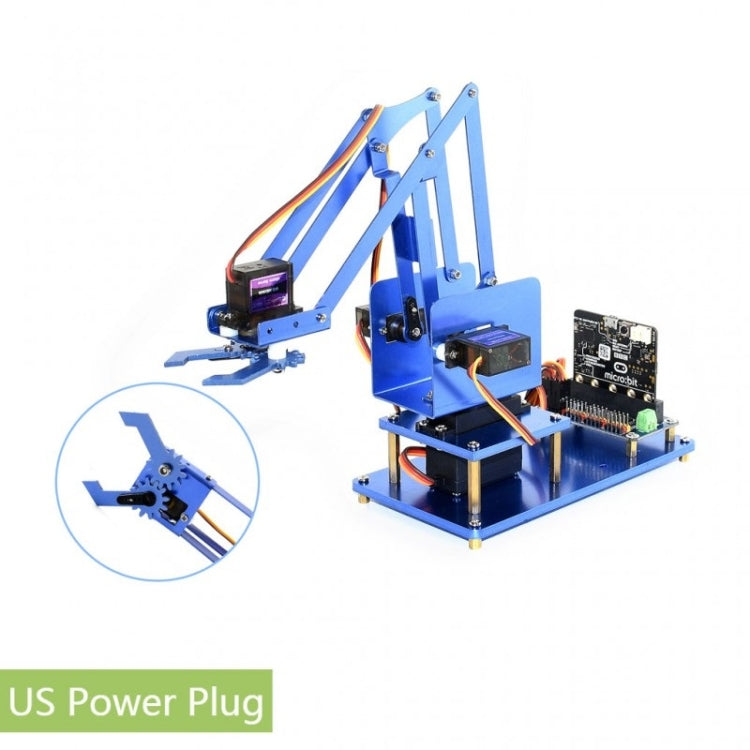

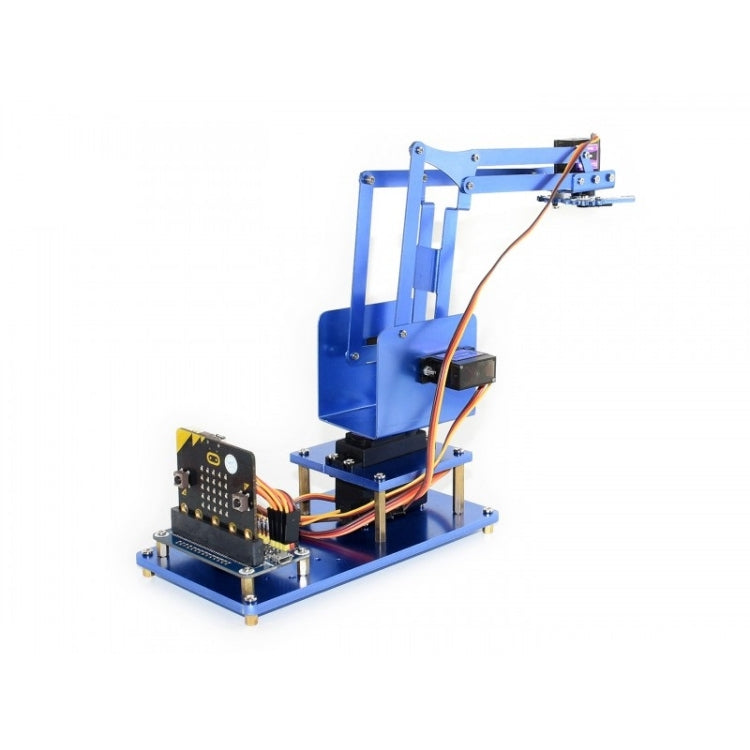

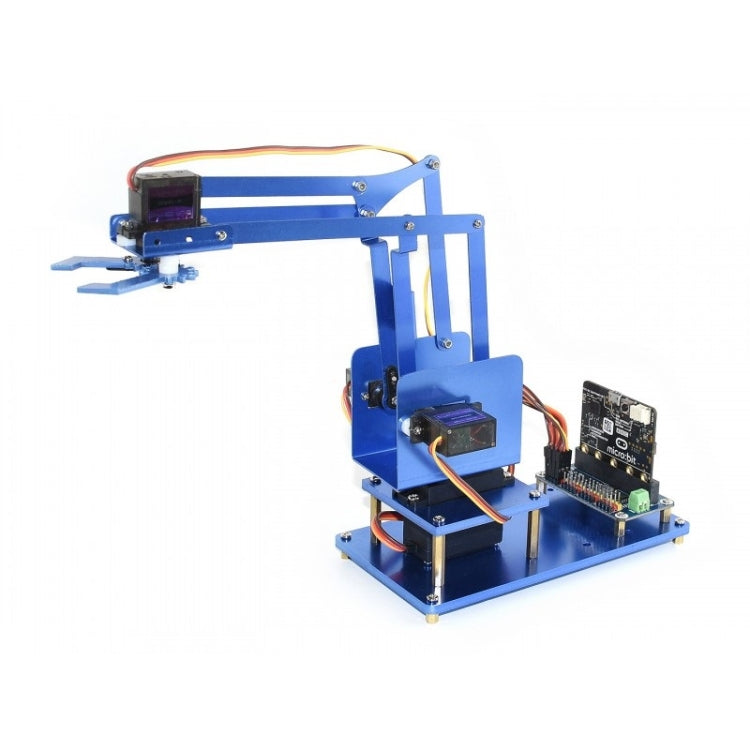

1. Equip your micro:bit with this 4-DOF metal robot arm, and get started to explore the world of artificial intelligent robotic.
2. This starter robotic arm kit includes: servo driver board, metal mechanical arm structure, and 4x metal gear servos. When used with the micro:bit, it is easy to control the arm by smart phone through Bluetooth connection.
The Servo Driver
Adopts Servo Driver for micro:bit:
1. Micro:bit edge connector, directly pluggable
2. I2C controlled, using only 2 pins
3. Up to 16-Channel servo/PWM outputs, 12-bit resolution for each channel (4096 scales)
4. Integrates 5V regulator, up to 3A output current, can be powered from battery through VIN terminal
5. Standard servo interface, supports common used servo such as SG90, MG90S, MG996R, etc.
6. Reserved I2C control pins, allows to work with other control boards
7. Comes with development resources and manual (micro:bit graphical examples like Bluetooth/2.4G wir eless remote control)
The Robot Arm Structure
1. 4-DOF, large solid base, metal mechanical grasper
2. Full aluminium alloy body, sandblasting oxidation surface, strong & durable
3. Clever mechanical structure and mounting design, agile to control, easy to build
3. Fitted with 4x metal gear servos (1x MG996R, 3x MG90S), large torque force, smooth moving

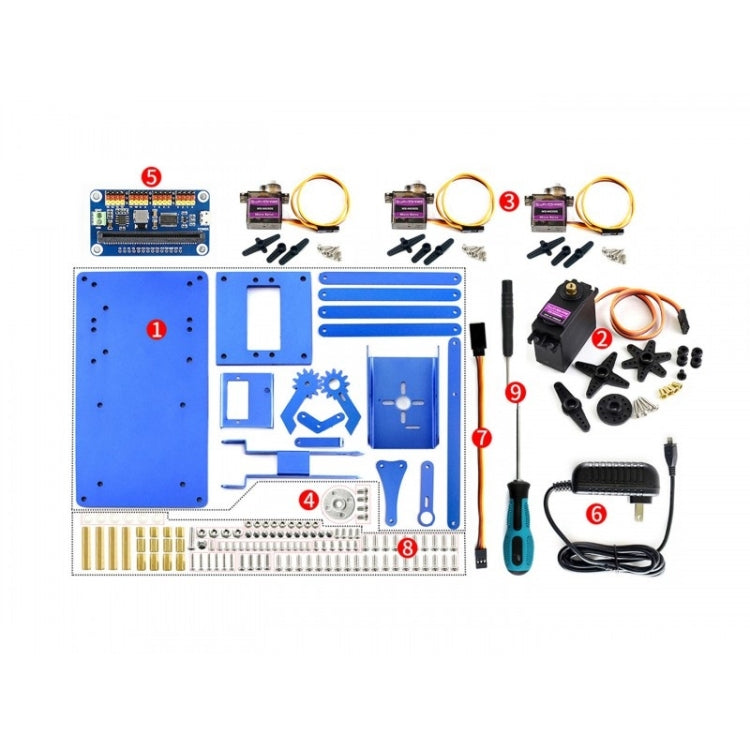

Package Include
Note: micro:bit is NOT included.
1. Metal arm parts x1
2. MG996R Servo x1
3. MG90S Servo x3
4. MG996R servo wheel x1
5. Servo Driver for micro:bit x1
6. Power adapter US plug 5V 3A Micro x1
7. Servo extension wire 150mm x1
8. Screws pack x1
9. Screwdrivers 2PCS x1
Specification:
| Package Weight |
| One Package Weight |
0.55kgs / 1.21lb |
| One Package Size |
25cm * 15cm * 8cm / 9.84inch * 5.91inch * 3.15inch |
| Carton Weight |
11.00kgs / 24.25lb |
| Carton Size |
50cm * 30cm * 40cm / 19.69inch * 11.81inch * 15.75inch |
| Loading Container |
20GP: 444 cartons * 20 pcs = 8880 pcs
40HQ: 1031 cartons * 20 pcs = 20620 pcs
|
|
