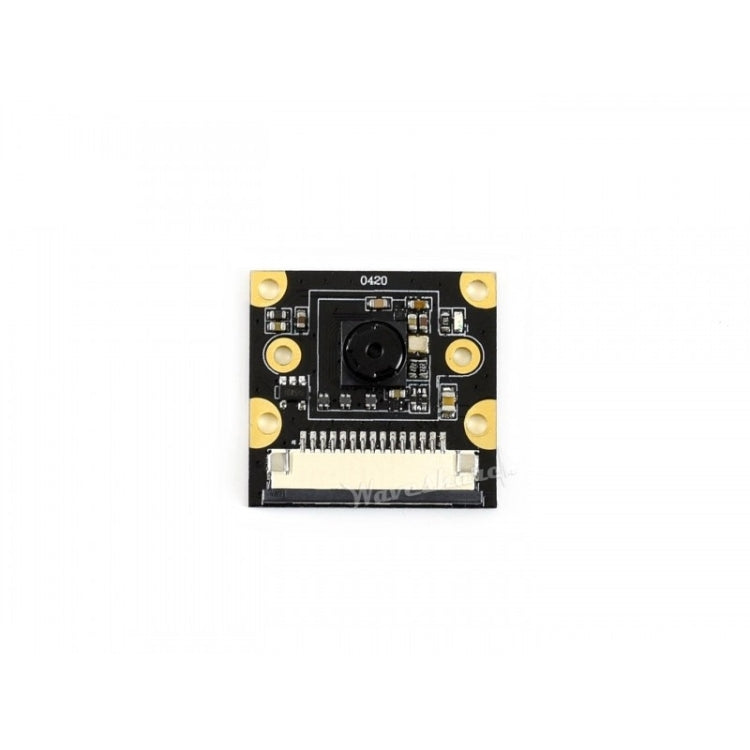

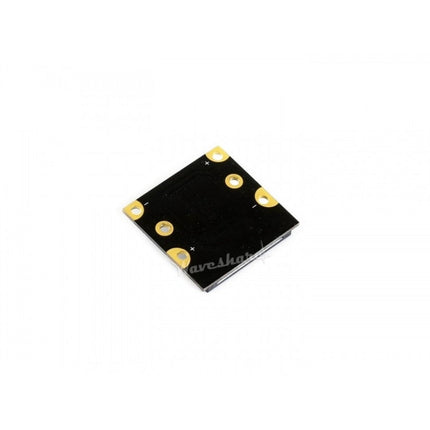

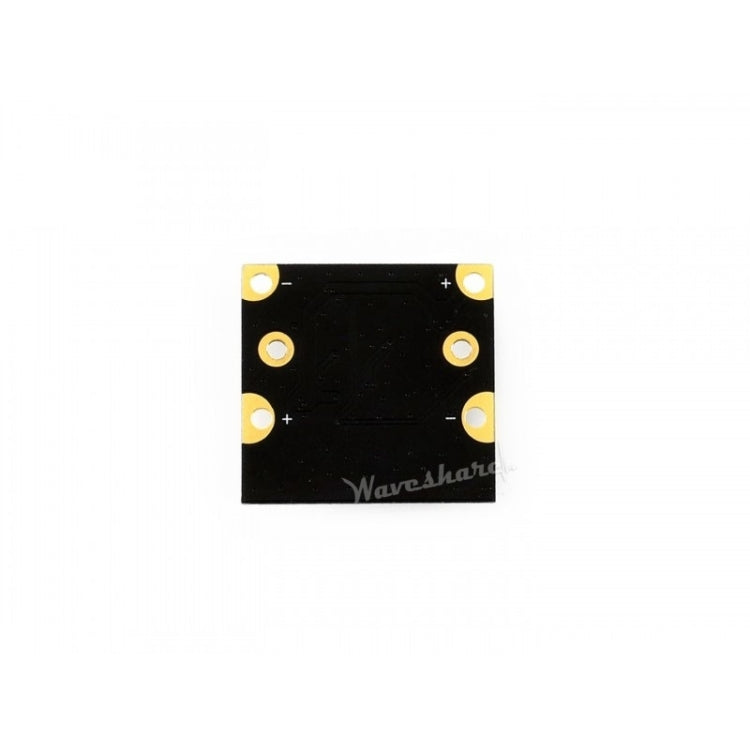

Waveshare IMX219-77 8MP 77 Degree FOV Camera, Applicable for Jetson Nano

Waveshare IMX219-77 8MP 77 Degree FOV Camera, Applicable for Jetson Nano

Product form

Features1. Support NVIDIA Jetson Nano Developer Kit2. 8 Megapixels3. Sensor: IMX2194. Lens specifications:- CMOS size: 1/4inch- Aperture (F): 2.0- Focal... Read more

Calculated at Checkout  Expedited Delivery Available!

£ 11.99 GBP

    • Guaranteed secure & safe checkout.

      shop pay
      • Shipping calculated at checkout,
      • No hassle returns, 30 days return

      Description

      Features

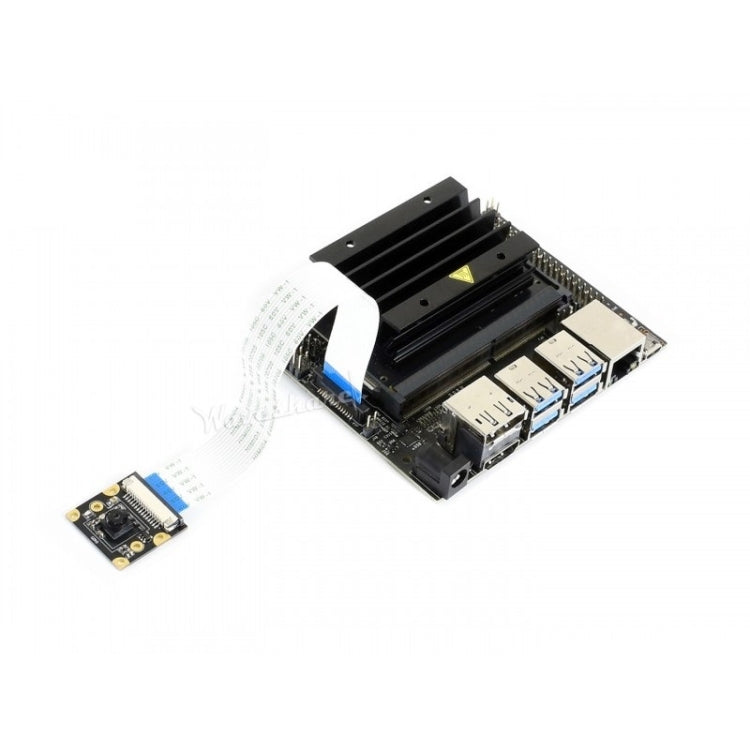

      1. Support NVIDIA Jetson Nano Developer Kit
      2. 8 Megapixels
      3. Sensor: IMX219
      4. Lens specifications:
      - CMOS size: 1/4inch
      - Aperture (F): 2.0
      - Focal Length: 2.96mm
      - Angle of View (diagonal): 77 degree
      - Distortion: <1%
      - Lens dimensions: 6.5mm x 6.5mm
      5. 4 screw holes
      6. Used for attachment
      7. Provide 3.3V power output
      8. Support connecting infrared LED and/or fill flash LED
      9. Dimension: 25mm x 24mm
      10. Weight: 12g

      Packing List:

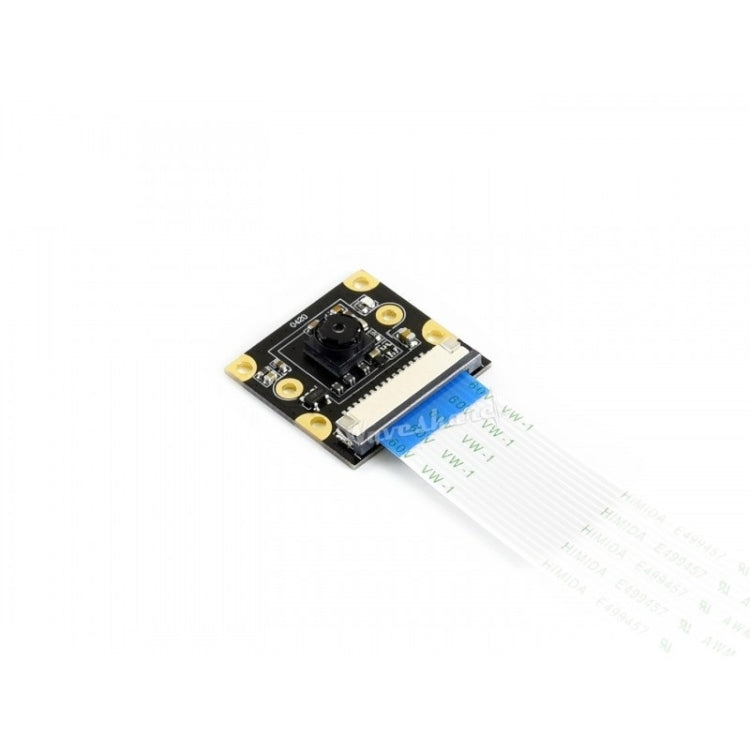

      1. IMX219-77 Camera x1
      2. 15-pin FFC (opposite sides contact) x1
      Specification:
      Package Weight
      One Package Weight 0.01kgs / 0.03lb
      One Package Size 3cm * 2cm * 1cm / 1.18inch * 0.79inch * 0.39inch
      Qty per Carton 16000
      Carton Weight 15.00kgs / 33.07lb
      Carton Size 60cm * 40cm * 40cm / 23.62inch * 15.75inch * 15.75inch
      Loading Container 20GP: 277 cartons * 16000 pcs = 4432000 pcs
      40HQ: 644 cartons * 16000 pcs = 10304000 pcs
