Description

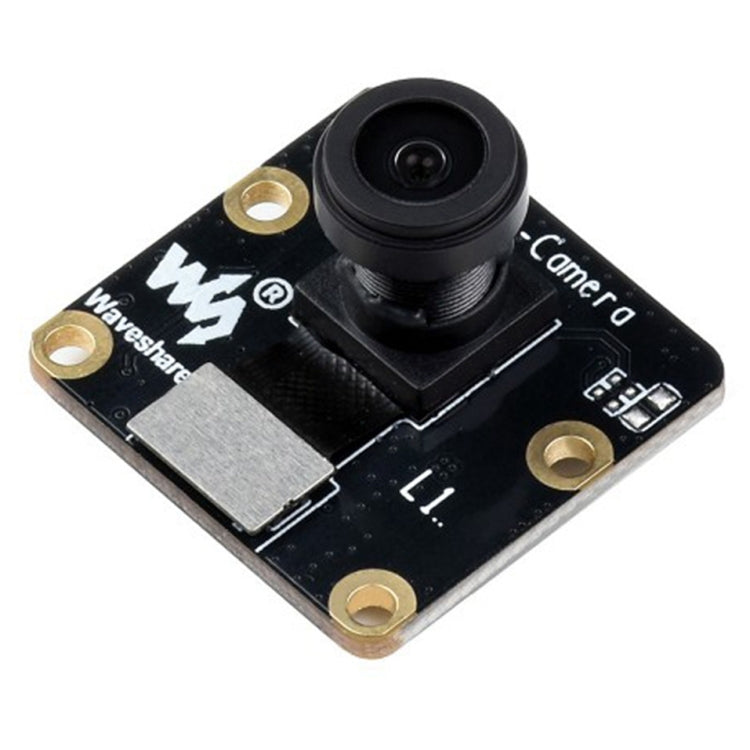

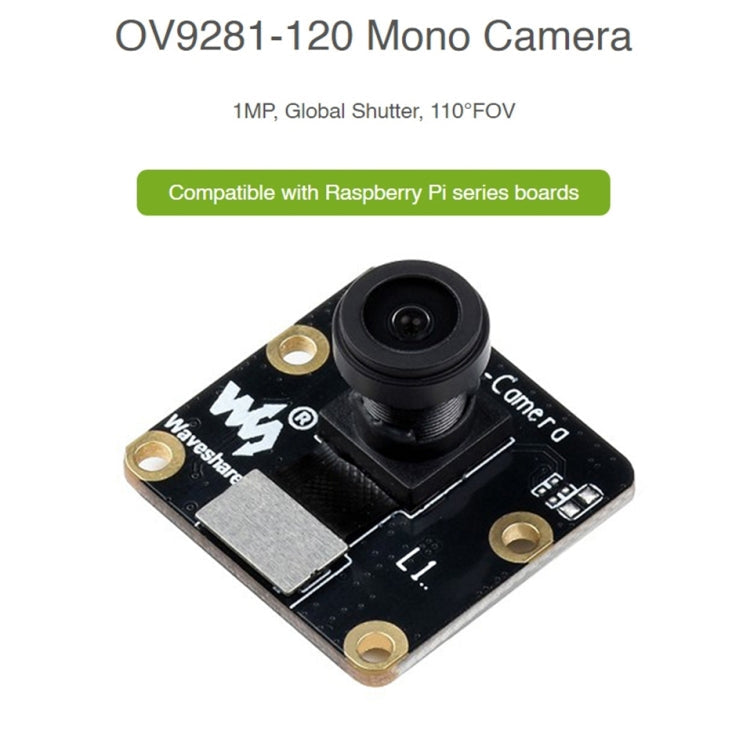

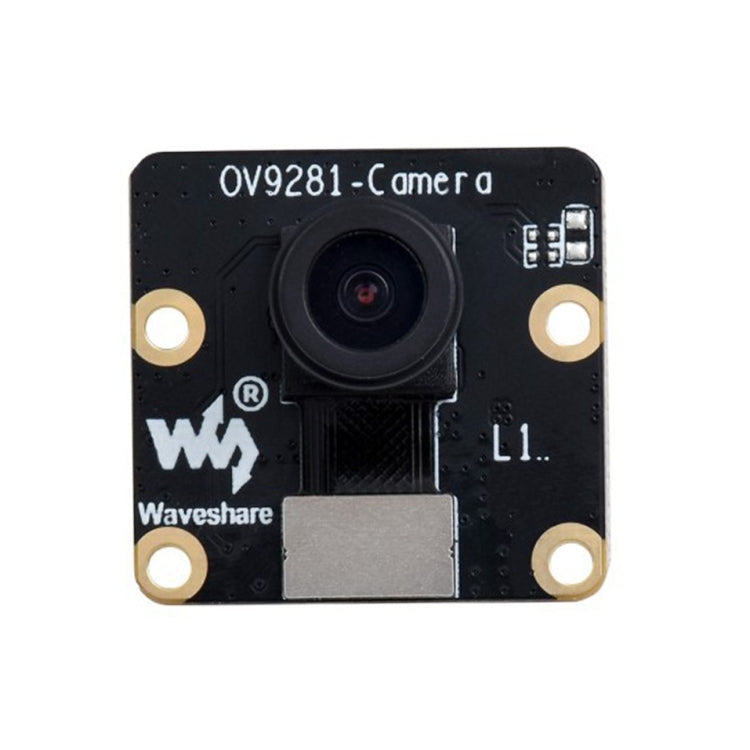

1. 1MP, global shutter, 120 degree FOV, OV9281-120 mono camera, compatible with Raspberry Pi series boards
2. The global shutter eliminates jello-effect while shooting fast moving objects, more suitable for high frame rate capturing

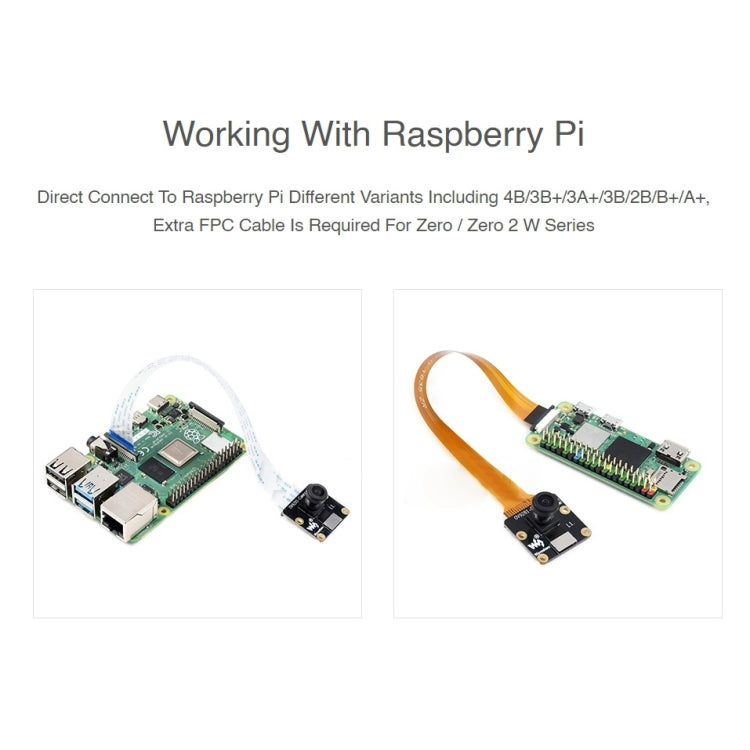

3. Working with Raspberry Pi, direct connect to Raspberry Pi different variants including 4B / 3B+ / 3A+ / 3B / 2B / B+ / A+, extra FPC cable is equired for Zero / Zero 2 W series
Specifications:
1. Sensor: OV9281
2. CMOS size: 1/4 inch
3. Camera type: Mono
4. Pixels: 1MP (1280 x 800)
5. Shutter: Global Shutter
6. Aperture: F2.5
7. Distortion: Less than 7.5%
8. Field of vies: 120 degree
9. Focal length: 3.15mm
10. Focusing: Fixed focus
Package List:
1. OV9281-120 Camera x 1

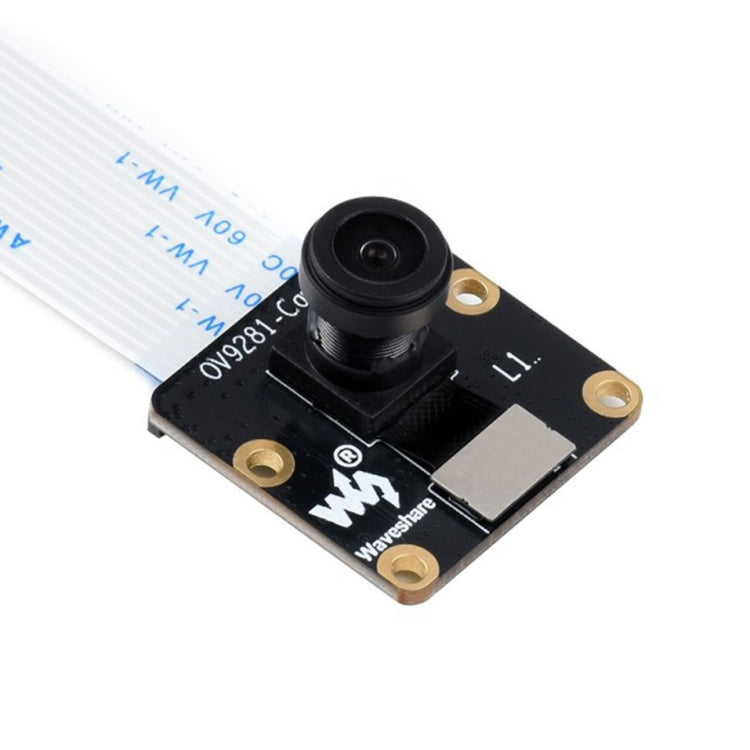

2. 15-pin FFC (opposite sides contact) x 1
Specification:
| Package Weight |
| One Package Weight |
0.07kgs / 0.16lb |
| One Package Size |
15cm * 12cm * 2cm / 5.91inch * 4.72inch * 0.79inch |
| Carton Weight |
14.00kgs / 30.86lb |
| Carton Size |
42cm * 32cm * 32cm / 16.54inch * 12.6inch * 12.6inch |
| Loading Container |
20GP: 620 cartons * 200 pcs = 124000 pcs
40HQ: 1439 cartons * 200 pcs = 287800 pcs
|
|
