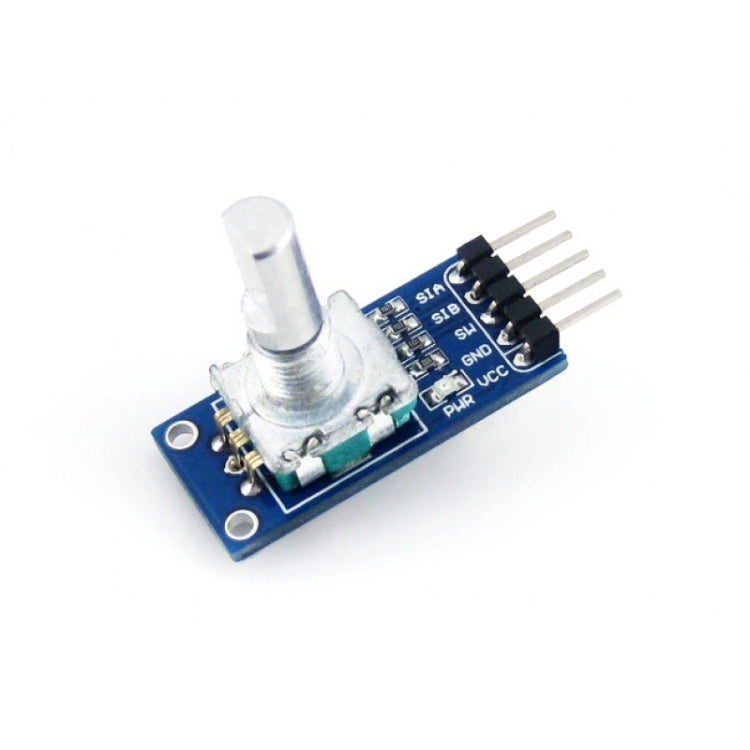

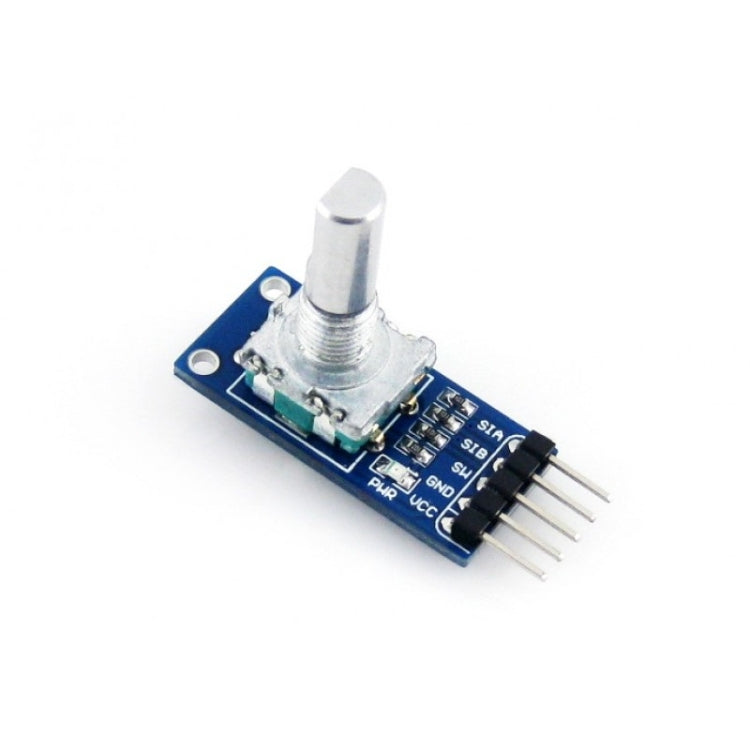

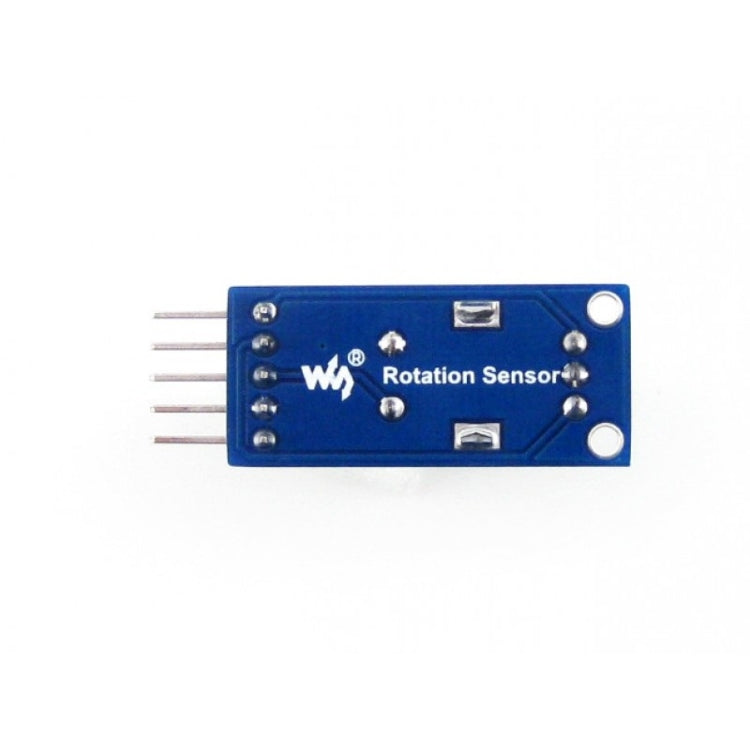

Waveshare Rotation Sensor, Rotation

Waveshare Rotation Sensor, Rotation

Product form

OverviewDetects clockwise/anti-clockwise rotations: degrees and lapsSpecifications1. Pulses per lap: 152. Power: 3.0V ~ 5.3V3. Dimension: 32.1mm * 15.4mm4. Mounting holes... Read more

Calculated at Checkout  Expedited Delivery Available!

£ 2.99 GBP

    • Guaranteed secure & safe checkout.

      shop pay
      • Shipping calculated at checkout,
      • No hassle returns, 30 days return

      Description

      Overview
      Detects clockwise/anti-clockwise rotations: degrees and laps

      Specifications
      1. Pulses per lap: 15
      2. Power: 3.0V ~ 5.3V
      3. Dimension: 32.1mm * 15.4mm
      4. Mounting holes size: 2.0mm

      Applications
      Positioning in Industrial Controls

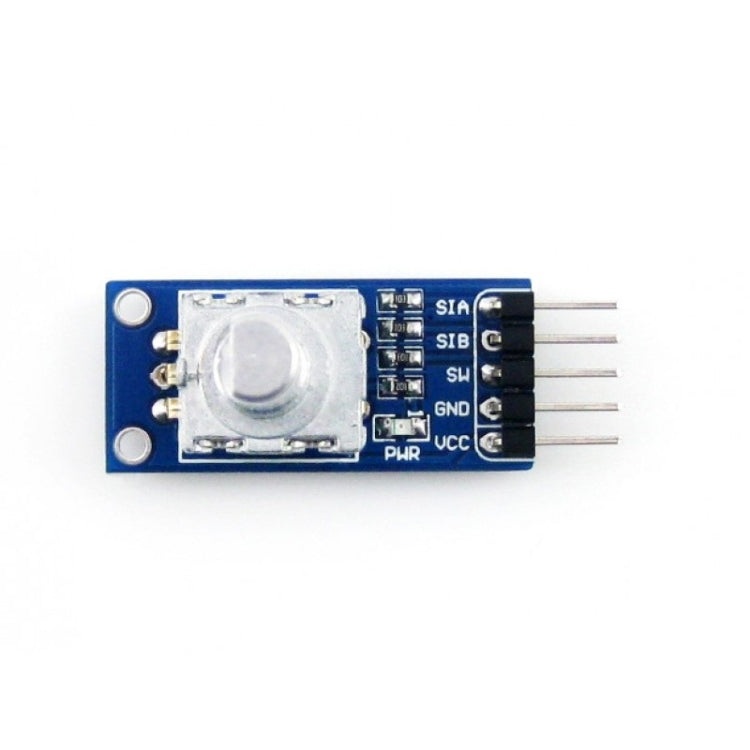

      How to Use

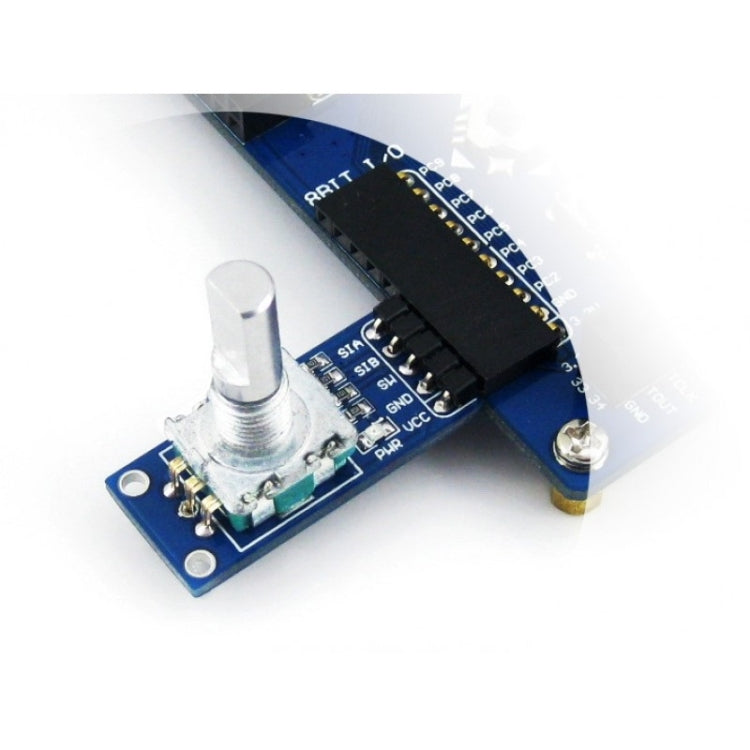

      In the case of working with a MCU:
      1. VCC -- 3.0V ~ 5.3V
      2. GND -- Power supply ground
      3. SW -- MCU.IO (encoder button status)
      4. SIB -- MCU.IO (output status)
      5. SIA -- MCU.IO (output status)
      Specification:
      Package Weight
      One Package Weight 0.02kgs / 0.04lb
      One Package Size 5cm * 2cm * 1cm / 1.97inch * 0.79inch * 0.39inch
      Qty per Carton 9600
      Carton Weight 15.00kgs / 33.07lb
      Carton Size 60cm * 40cm * 40cm / 23.62inch * 15.75inch * 15.75inch
      Loading Container 20GP: 277 cartons * 9600 pcs = 2659200 pcs
      40HQ: 644 cartons * 9600 pcs = 6182400 pcs
